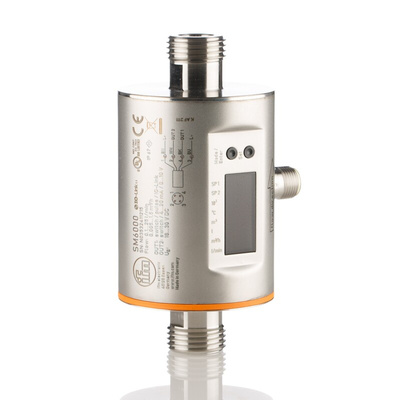

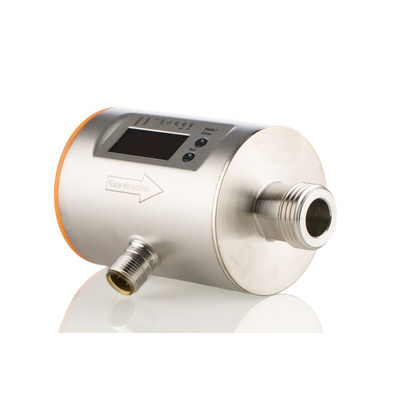

SM6000, ifm electronic Flow Controller, 0.1 → 25 L/min, PNP Output, 19 → 30 V dc, 1/2 in Pipe, Регулятор потока

ifm electronic Flow Controller

The ifm electronic flow controller has a maximum flow rate monitoring range from 0.1L/min to 25L/min. It is magnetic-inductive volumetric flow sensor of the SM series monitors liquids. It has a supply voltage ranging rating between 19VDC and 30VDC. It detects the three process categories: volumetric flow quantity, consumed quantity and medium temperature. Peak consumption, present consumption or accumulated consumption can be accessed and adjusted via a programmed switch and alarm level settings, everything at the touch of a button. The robust stainless steel housing and high protection rating provide high security even in harsh environments. Depending on the volumetric flow quantity to be detected, the devices with different process connections are offered.
Product application information:
They are frequently used in cooling circuits. For example, in steelworks, the automotive industry and in glassmaking. In water management and industrial installations, the sensors are used for water consumption measurement.

Features and Benefits

With volumetric flow quantity, total quantity and temperature indication
High accuracy, repeatability and measurement dynamics
Conductive media from 20μS/cm
With switching output, analogue output and pulse output
Clearly visible LED display
Two switching outputs, which can be programmed as normally open or normally closed
Quantity monitoring, the other output transmits counting pulses to the controller
In addition to volumetric flow monitoring, the SM also monitors the temperature of the medium
It is displayed on the unit and provided for signal processing

Applications

Monitor cooling circuits
Industrial use

Certifications

CE certified
