PX0587, Bulgin C13 Cable Mount IEC Connector Socket, 10A, 250 V, Разъем

Rewireable IEC Sockets (C13)

From Bulgin, this re-wireable cable mounting sockets is available straight, right angle and bottom entry styles. These sockets have a contact resistance of <10mΩ, and an insulation resistance of >10⁴MΩ. Operating temperature is -40°C to +70°C. Max pin temperature 65°C. Kite mark licence no. 6745.

Note

Retaining clips for straight connectors available separately: RS stock nos.195-928 and 211-0935

Approvals

UL listed recognised component, CSA certified, VDE, IMQ (except PX0588), BSI

488-208 - Bulgin IEC Connector

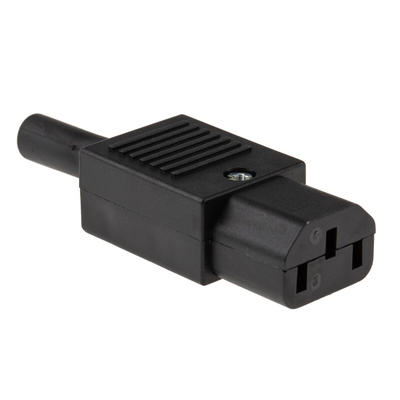

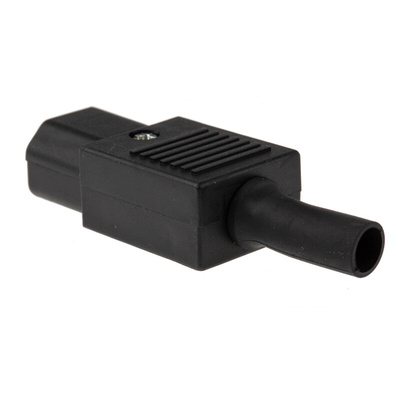

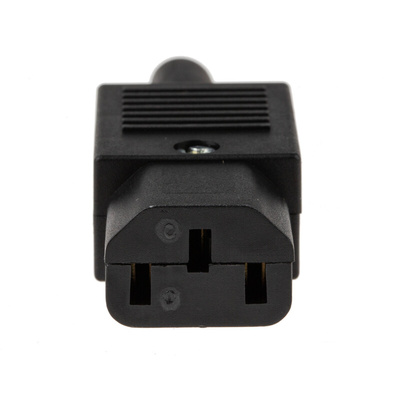

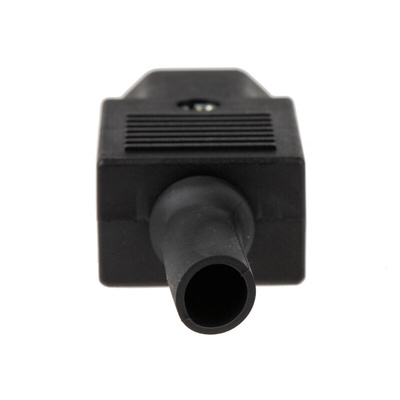

The Bulgin IEC EN60 320-1 standard female plug connector is a cable mount, straight C13 connector with bottom entry styles. It has a voltage rating of 250V ac and current rating of 10A. This M connector has 3 contacts which are made from brass.

Features and Benefits

Easy to connect and rewireable
Screw terminal
Contact resistance is less than 10mΩ
Insulation resistance is greater than 1000MΩ
Operating temperature ranges between -40°C and +70°C
Withdrawal Force 10N to 50N
Mouldings – Nylon for durability and safe operation, Flammability Rating UL94V-0
Brass Contacts

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified

Approvals

UL recognised component, CSA certified

UL E70394

IEC Connectors datasheet

Certificate

Datasheet_PX0587
