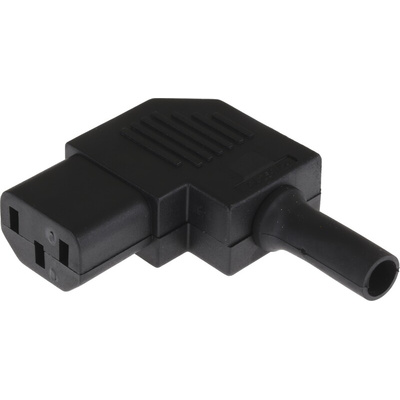

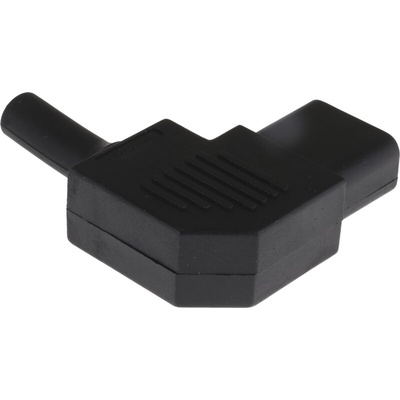

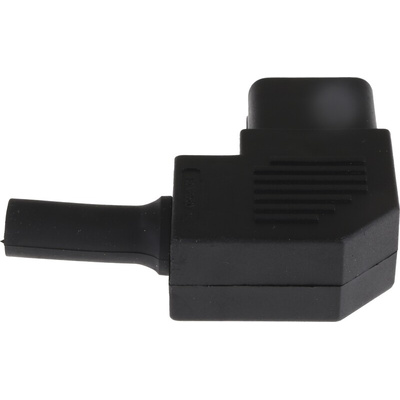

PX0587/SE, Bulgin C13 Right Angle Cable Mount IEC Connector Socket, 10A, 250 V, Разъем

Rewireable IEC Sockets (C13)

From Bulgin, this re-wireable cable mounting sockets is available straight, right angle and bottom entry styles. These sockets have a contact resistance of <10mΩ, and an insulation resistance of >10⁴MΩ. Operating temperature is -40°C to +70°C. Max pin temperature 65°C. Kite mark licence no. 6745.

Note

Retaining clips for straight connectors available separately: RS stock nos.195-928 and 211-0935

Approvals

UL listed recognised component, CSA certified, VDE, IMQ (except PX0588), BSI

Bulgin IEC Side Entry Female Connector

From Bulgin these connectors are perfect for using with most mains powered equipment and cable applications are therefore are extremely useful and versatile.

This black nylon, side entry, female connector is ideal for cable mounting and allows for easy access if any rewiring is necessary.

Features and Benefits

• Side entry female connector
• Cable mounting
• Rewireable
• Screw terminals
• Black nylon

IMQ E6557

UL E70394

IEC Connectors datasheet
