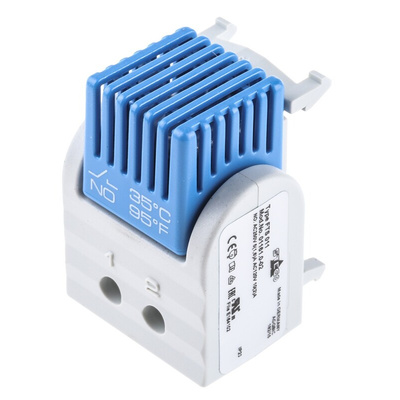

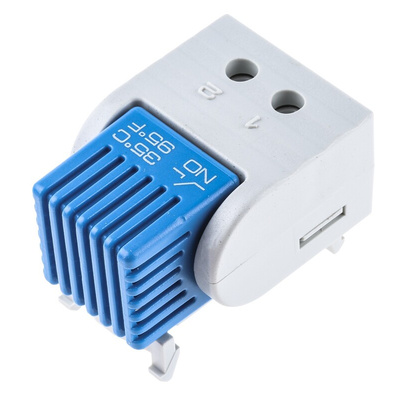

01161.0-02, STEGO Enclosure Thermostat, Термостат

0489242
Номер производителя: 01161.0-02Производитель: STEGO
Цена за шт.
4083.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 3966.00 руб. 3867.00 руб. 3552.00 руб. 2847.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Tamperproof Thermostats

Tamperproof thermostats are pre-set and cannot be tampered with, so it is impossible to have the incorrect setting. Installation is simple and quick by screw terminals (up to 2,5mm²) and using a din-rail clip feature. Two (dual) tamperproof thermostats in the one housing allow independent control of heating and cooling from the one unit.

NC (red), NO (blue)
Compact
°F or °C
Fixed temperature settings
Easy to install
DIN rail mounting
High switching tolerance
Dimensions 33x33x47mm
Operating voltage, max switching capacity 230v ac, 5(1.6)A, DC30W
Contact resistance less than 20mΩ
Service life greater than 100,000 cycles
Dual = NC and NO in one housing

Approvals

CE; VDE; UL

Техническая спецификация
pdfThermal Management Products & Accessories Catalogue
Конфигурация коммутатора:
Нет
Напряжение питания:
120 В перем. тока, 250 В перем. тока
