1000-366, Megger DET4TCR2 Earth Tester 200kΩ CAT IV 100 V, Измеритель сопротивления заземления

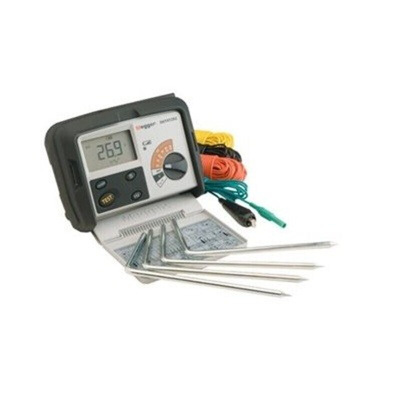

DET4TCR/2 4 Pole Rechargeable Earth Tester Kit

4 pole earth tester with rechargeable batteries for measuring soil resistivity and resistance of earth rods and associated installations.,The ICLAMP selective clamp allows the DET4TCR/2 to perform testing of an earth rod without the need for disconnection from the system.,The VCLAMP when used in conjunction with ICLAMP allows stakeless measurements to be made in situations where driving auxiliary stakes is not practical

Resistance range 0.01 to 200k ohms auto ranging
Choice of 2, 3 or 4 terminal measurements
Simple one button operation
Superior noise rejection to 40V pk-pk
Measures earth voltage 0 – 100V
Automatic P spike and C spike check
User selectable test frequency
No-disconnect testing using ICLAMP
Stakeless testing using ICLAMP and VCLAMP
Earth current range using ICLAMP
Mains charger with UK, US, EU, and Australian plug adaptors

Standards

EN61010-1 CAT IV 100V

Supplied with

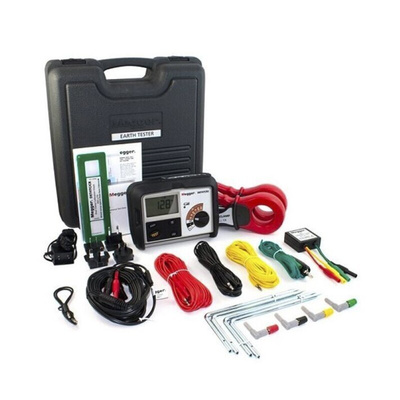

ICLAMP, VCLAMP, 4 earth test stakes, 4 connection leads, field calibration check for instrument and CLAMPS, 8 x AA NiMH rechargeable batteries, hard carry case, mains charger, quick start guides, user guide on CD

DET4TC2_DET4TCR2_Datasheet

DET Series EARTH GROUND ELECTRODE TESTERS USER GUIDE
