1000-346, Megger DET4TCR2 Earth Tester 200kΩ CAT IV 100 V, Измеритель сопротивления заземления

0489674
Номер производителя: 1000-346Производитель: Megger
Цена за шт.
424500.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

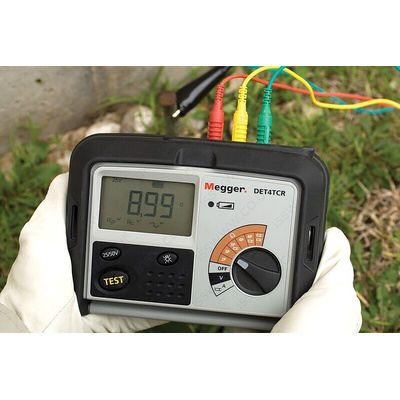

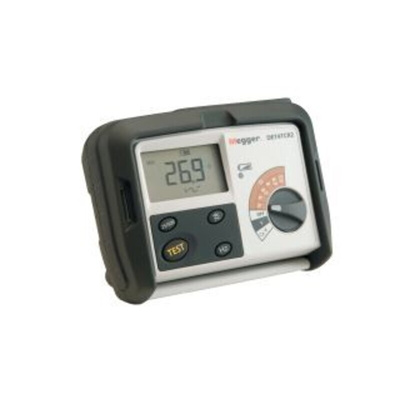

Megger Earth & Ground Resistance Tester

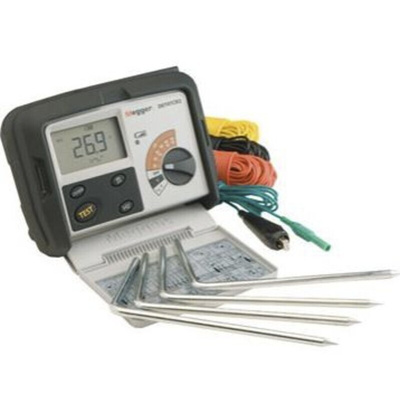

The Megger earth and ground resistance tester measure a 200kΩ absolute maximum resistance and having the CAT IV 100V safety category. This 4-pole earth tester is used to measure soil resistivity and resistance of earth rods and associated installations. It is supplied in a hard carry case together with auxiliary stakes and cables. An ICLAMP selective clamp is available separately and when used with the DET4TC allows the testing of an earth rod without the need to disconnect from the system. A VCLAMP is also available separately, which when used in conjunction with ICLAMP allows stakeless measurements to be made in situations where driving auxiliary stakes is not practical. It has a rechargeable battery-powered 4-terminal tester with selectable test frequencies, greater measurement sensitivity and attached rod technique and stakeless measurement capability.

Features and Benefits

Automatic P spike and C spike check
Choice of 2, 3 or 4 terminal measurements
Clamp input for no-disconnect testing (requires ICLAMP)
Clamp inputs for stakeless testing (requires ICLAMP and VCLAMP)
Earth current range (requires ICLAMP)
Measures earth Voltage ranges between 0V and 100V
Operating temperature ranges between -15°C and 55°C
Resistance ranges between 0.01ohms and 20000ohms auto ranging
Simple one button operation
Superior noise rejection to 40V (Pk-Pk)

Certifications

EN61010-1 CAT IV 100V
IEC61326
IP54 rated

Техническая спецификация
pdfDET4TC2_DET4TCR2_Datasheet
pdfDET Series EARTH GROUND ELECTRODE TESTERS USER GUIDE
Абсолютное максимальное измерение температуры:
200кОм
Вес:
1кг
Включает в себя:
Calibration Certificate, Case, Spike, Test Lead
Высота:
148мм
Длина:
203мм
Источник питания:
Батарея
Категория безопасности:
CAT IV 100 В
Модель р:
DET4TCR2
Наилучшая точность:
±2% + 3 знака
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-15°C
Срок службы батареи:
3 ч
Тип батареи:
AA
Тип дисплея:
LCD
Тип измерения:
4 Terminal Earth Resistance, Soil Resistance
Ширина:
78мм
