236730 PXF-16/2/003-A, Eaton PXF-A RCCB, 16A, 1P+N Pole, 30mA, Type A, 230V ac, Автоматический выключатель

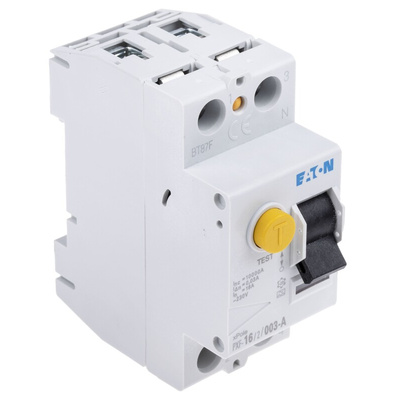

Eaton Type A RCD Switch, 1P+N, 30mA Trip Sensitivity - PXF-A Series - 236730PXF-16/2/003-A

Shut down your circuit before residual current becomes hazardous with this RCD switch from Eaton. It has a 30mA trip sensitivity and it immediately breaks the circuit when this level is exceeded to avoid the risk of electrical hazards. The versatile device's type A tripping characteristic means it works with AC and pulsating DC power supplies. Featuring both a protective and a neutral pole, the unit monitors the live and neutral wires to ensure maximum protection.

Features & Benefits

• Current rating of 16A suits many residential and commercial applications
• Touch-proof unit has an IP20 rating, indicating protection against tools and wires over 12mm
• Tolerates impulse voltages up to 4kV to handle electrical surges
• Easily mounts onto a DIN rail using built-in latches for quick and secure installation

What's a residual current and why is it dangerous?

Residual current is the difference between the current entering your electrical system and the current leaving it. If there's a fault with your power supply or device and current is held in a circuit even after it's switched off, it can pose a risk of electric shock to operators.

Approvals

DIN VDE 0664 part 10

Standards

IEC / EN 61008

Datasheet - Eaton PXF-16/2/003-A
