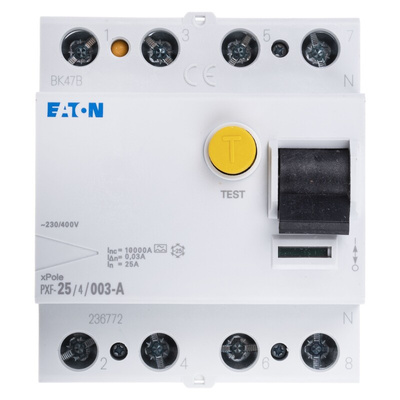

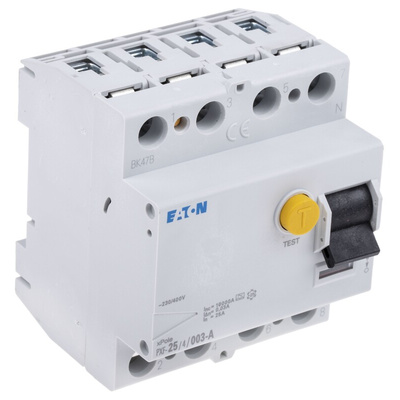

236772 PXF-25/4/003-A, Eaton PXF-A RCCB, 25A, 3P+N Pole, 30mA, Type A, 400V ac, Автоматический выключатель

Eaton Type A RCD Switch, 3P+N, 30mA Trip Sensitivity - PXF-A Series - 236772 PXF-25/4/003-A

Use this RCD switch from Eaton to safeguard your electrical system against current leakage. It features three protective poles and a neutral line to provide your three-phase voltage supply with a high level of protection. Designed to trip when residual current reaches 30mA, the unit breaks the circuit to eliminate the risk of electric shock. Its versatile 25A current rating makes it suitable for many standard residential and commercial applications.

Features & Benefits

• Type A tripping characteristic means the device is compatible with both AC and pulsating DC supplies
• Non-delayed tripping style immediately breaks the circuit as soon as the residual current climbs too high
• DIN rail mounting style makes installation easy and secure
• IP20 rating indicates the unit is touch-proof and protected against damage from tools and wires over 12mm

Can I fit this RCD switch in an enclosure?

Yes, this RCD switch is compatible with installation in enclosures. When it's mounted this way, the unit has an IP40 rating to indicate protection against solid objects over 1mm like nails and wires.

Datasheet - Eaton PXF-25/4/003-A
