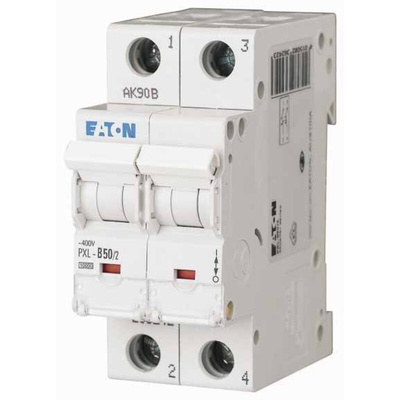

236242 PXL-B50/2, Eaton xPole PXL, S200 MCB, 2P, 50A Curve B, 400V AC, 48V DC, 10 kA Breaking Capacity

Eaton xPole Miniature Circuit Breaker

The Eaton xPole range of curve B MCBs features high quality residual current circuit breakers with overcurrent protection that is independent of the mains voltage. The MCB has high selectivity as a pre-fuse with low passband energy.

Features and Benefits

• Indication of the contact position is easy to identify due to a "red-green" indicator, to increase safety and offer protection for the operator
• The circuit breaker features dual terminals which are compatible with both busbar and cables
• The device is easy to use, with a simple colour coded toggle
• The appliance has a double terminal, lift/jaw top and bottom and free selection of rail arrangement top and bottom
• Finger-proof / back-of-hand-proof
• Quick-fit action with 3 locking positions for top-hat rail IEC / EN 6071
• High breaking capacity
• Current limiting feature for enhanced safety and reliability of the electrical system

Uses and Applications

The Eaton MCBs are switchgear for use in industrial, advanced commercial and residential applications.

Standards

IEC / EN 60898

MCB-B50/2 Data Sheet
