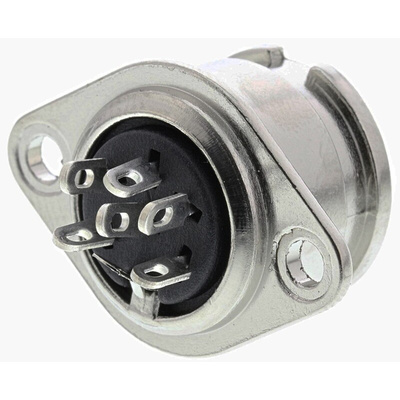

RS PRO 6 Pole Din Socket, 1A, 100 V ac, Bayonet, Female, Chassis Mount, Разъем

RS PRO 6 Pole Din Socket, 1 A, 100 V AC, Bayonet

This six-pole DIN standardised female socket from RS PRO creates a connection between electronic musical instruments and audio outputs. You'll typically find it used in professional music applications or in theatre audio systems. Its bayonet locking system features spring-loaded slots which easily slide into a male plug's pins to make a secure and reliable join.
The socket's polyamide housing has a high tensile strength which means it can be put under pressure with little chance of cracking or breaking. This nylon plastic is also lightweight so it won't put any unnecessary strain on your connections. For quick and easy chassis mounting, the unit features two fixing holes.
You can use a socket like this in musical digital interface applications. It's Restriction of Hazardous Substances (RoHS) compliant so contains only minimal amounts of any harmful materials.

Features and Benefits

• Straight body orientation
• Brass and copper contact material
• Nickel and silver contact plating
• Female gender
• ABS ( acrylonitrile butadiene styrene) housing material
• Bayonet mating type
• Operating temperature range of -25°C to +70°C
• Chassis mounting type
• Six contacts
• Shielded
• Current rating of 1 A
• Voltage rating of 100 V AC

RS Pro Datasheet
