RS PRO 3 Core Power Cable, 2.5 mm², 100m, White PVC Sheath, 3183Y, 20 A, 500 V

RS PRO BASEC Approved H05VV-F Harmonised Flexible PVC Insulated Mains Cable

From RS PRO a high-quality BASEC approved medium duty H05VV-F harmonised flexible mains power cable with PVC insulation and a PVC jacket. This flexible cable has a voltage rating of 300 to 500 V and is designed for use in medium duty domestic and office applications.

What is Mains Cable?

A mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply.

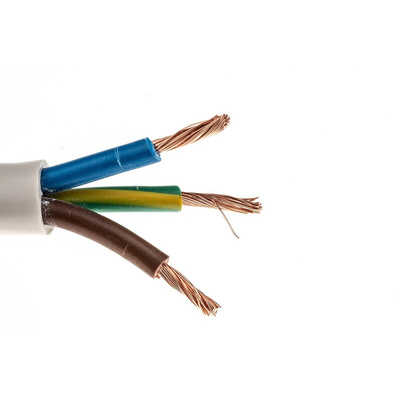

Cable Construction

This flexible electrical power cable consists cores made up of fine stranded copper conductors or wires. Each individual core is surrounded by colour coded PVC (Polyvinyl Chloride) insulation for easy identification of the wires. All the cores are then surrounded by a final outer layer of PVC called a sheath or jacket.

What is BASEC Approval?

BASEC is an independent accredited certification body for the cable industry worldwide which provides an approvals service for cables. BASEC conducts rigorous, high-quality testing across a range of sectors that supply and install cable. These tests meet all the relevant standards and regulations ensuring the cables supplied are safe to use and of the highest quality.

What Does H05VV-F Mean?

H05VV-F mains power cable (also known as 318-Y cable) is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality across Europe to ensure the trade of common standard product.

H05VV-F is the code for this harmonised power cable which breaks down into the following:

• H = Harmonised
• 05 = 300V / 500V voltage rating
• V = PVC insulation
• V = PVC sheath
• F = Flexible copper conductors

Benefits of PVC Insulated Mains Cable

The PVC insulation and sheath of this mains power cable has the following properties:

• Low cost
• Excellent insulation properties
• Flexible
• Stable, robust and durable
• Oil resistant

Where are These Cables Used?

PVC insulated mains cables are used for medium duty wiring in domestic, kitchen and office premises. This electrical mains cable should be used for wiring appliances that are indoors or in a covered, dry or humid area and is best used where the potential for mechanical stresses and mechanical damage is low. This cable can only be used with cooking and heating equipment if the cable does not come into direct contact with the hot parts of the equipment or with any other heat source. Applications include washing machines, dishwashers, refrigerators, spin dryers, computer and office equipment.

RS PRO BASEC Approved H05VV-F Harmonised Flexible PVC Insulated Mains Cable

We are proudly introducing our own branded RS PRO Flexible PVC Insulated Mains Cable with the voltage of 300 V up to 500 V and the ability for use in medium-duty domestic and office applications. The Cable has BASEC approval, meaning high-quality testing accreditation was given so you can purchase with confidence.

The copper's natural Power Cable makes it easy to work with thanks to the capability to bend or twist without breaking the material. The material is safe during installation, which will find appreciation by electricians while installing copper wire. Each core is surrounded by colour-coded PVC (Polyvinyl Chloride) insulation for easy identification of the cables. All the cores are then covered by a final outer layer of PVC known as sheath or jacket.

H05VV-F Mains Power Cable (also known as 318-Y Cable) is a type of Harmonised Cable, which means it belongs to the Harmonised Reference System and conforms to the European Harmonised Standard. The primary purpose of this standard is to improve quality across Europe to ensure the trade of the expected standard product.

The code breaks down into the following analogy:

• H = Harmonised


• 05 = 300 V / 500 V voltage rating


• V = PVC insulation


• V = PVC sheath


• F = Flexible copper conductors

Features and Benefits

• Meets Eca copper network Cable regulations, which is essential for any construction sites


• The core of 3 PVC sheath provides flexible, low cost and oil-resistant property


• Copper provides flexibility and straight-forward installation process thanks to the natural ability to bend and twist and does not require any special tools during installation


• The Mains Power Cable minimum operating temperature oscillates around -15°C whereas the maximum operating temperature is up to +70°C


• BASEC accreditation


• Ideal for medium-duty wiring in domestic, kitchen and office premises

Applications

PVC Insulated Mains Cables are used for medium-duty wiring in domestic, kitchen and office premises. This electric Mains Cable should be used for indoor wiring appliances and in a covered, dry or humid area and is best utilised where the potential for mechanical stresses and mechanical damage is low. If you are planning to use the Cable with cooking and heating equipment, the Cable cannot come into direct contact with the hot parts of the equipment or with any other heat source.

Typical applications usage includes:

• Washing machines


• Dishwashers


• Refrigerators


• Spin Dryers


• Computer


• Office equipment

Frequently asked questions

What is a Mains Cable?

In simple term, a Mains Cable, also known as Power Cord or Line Cord is an electric cable that temporarily connects an appliance to the mains electricity supply either by wall socket or extension cord.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

Approvals

BS6500, CENELEC HD21.5 and BASEC

Standards

BS EN 50525-2-11
