RS PRO 15 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch, Разъем

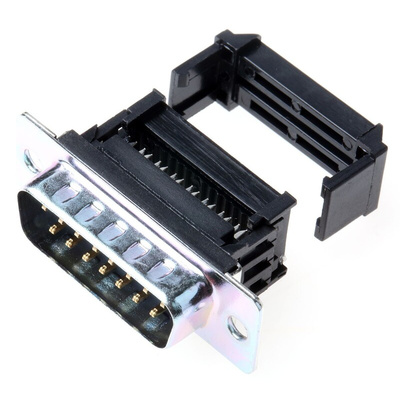

RS PRO 15-Way Right-Angle Cable Mounting D-Sub Connector Plug, 2.77 mm Pitch

This RS PRO 15-way plug connects to D-sub cables so you can insert them into an electronic device or component. The steel housing protects the plug from damage and has a zinc coating to resist rust and corrosion.
The plug's contacts are made of highly conductive brass that will transmit signal or current rapidly and efficiently without overheating. The gold-over-nickel plating creates layers of resistance against moisture and contaminants that could damage the product.
This connector plug is part of our RS PRO range, meaning it has been tested by engineers to ensure it meets our high standards of consistency and quality. Right-angle D-sub plugs like this are commonly used to mount a connection on the side or back of an electronic or computing device.

Features and Benefits

• Right-angle body orientation
• Brass contact material
• Gold-over-nickel contact plating
• Current rating of 3 A
• Dimensions of 39.2 (length) x 17.58 (width) x 12.55 mm (depth)
• Male gender
• Zinc-plated steel housing material
• Cable mounting type
• 15 contacts
• Pitch of 2.77 mm
• Insulation Displacement Connection (IDC) termination method
• Voltage rating of 250 V

RS Pro Datasheet
