RS PRO 25 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch, Разъем

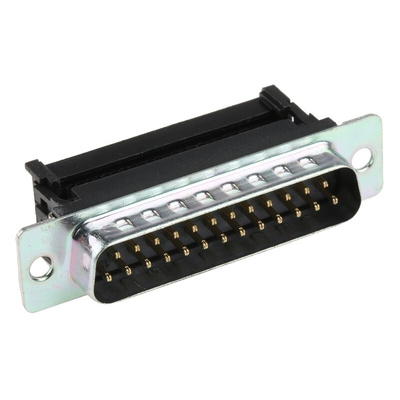

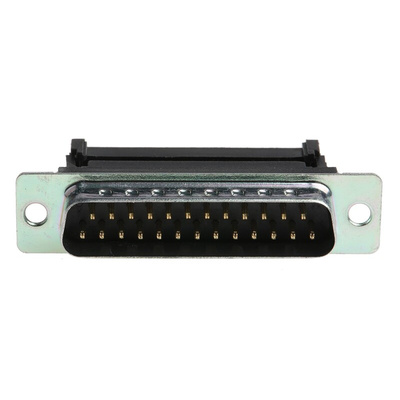

RS PRO 25-Way Right-Angle Cable Mount D-Sub Connector Plug, 2.77 mm Pitch

Connect this 25-way plug from RS PRO to a D-sub cable for easy insertion into an electronic device. Thanks to its zinc-plated steel housing, it's strong and resistant to corrosion and rust.


The brass material of the contacts is highly conductive to ensure efficient transmission of signal and current. It's also heat-resistant to prevent overheating. For added protection against moisture and contaminants that could damage the product, the contacts have a gold-over-nickel plating.


You'll find this type of right-angle D-sub plug used to mount a connection on the side or back of a computing or electronic device. As part of the RS PRO range, it has been tested for quality and consistency.

Features and Benefits

• Right angle body orientation


• Brass contact material


• Gold-over-nickel contact plating


• Current rating of 3 A


• Dimensions of 53.05 (length) x 17.58 (width) x 12.55 mm (depth)


• Male gender


• Zinc-plated steel housing material


• Cable mounting type


• 25 contacts


• Pitch of 2.77 mm


• IDC (Insulation-Displacement Contact) termination method


• Voltage rating of 250 V

RS Pro Datasheet
