RS PRO 9 Way Right Angle Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

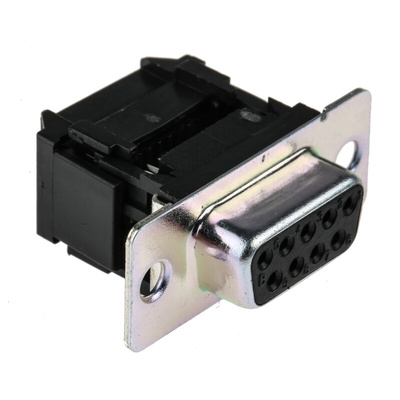

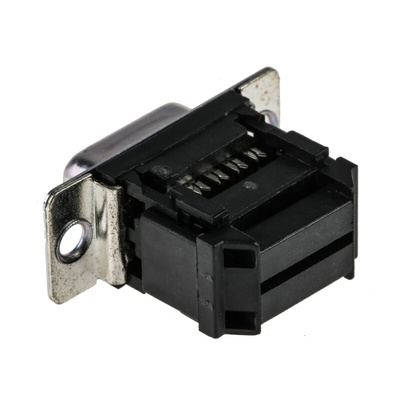

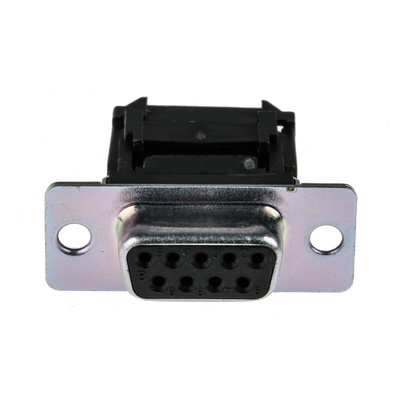

RS PRO 9-Way Right-Angle Cable Mount D-Sub Connector Socket, 2.77 mm Pitch

To easily insert a D-sub cable into an electronic device or component, use this nine-way socket from RS PRO. Its housing is made of zinc-plated steel to protect the plug against damage and prevent corrosion and rust.


The highly conductive and heat-resistant brass material of the contacts ensures fast and efficient transmission without overheating. Thanks to the gold-over-nickel plating, the contacts are also protected against moisture and other contaminants for a long-lasting product.


As part of the RS PRO range, this product has been tested for consistency and quality. You can use this right-angle D-sub socket to mount a connection on the back or side of a computing or electronic device.

Features and Benefits

• Right angle body orientation


• Brass contact material


• Gold-over-nickel contact plating


• Current rating of 3 A


• Dimensions of 30.81 (length) x 17.58 (width) x 12.55 mm (depth)


• Female gender


• Zinc-plated steel housing material


• Cable mounting type


• Nine contacts


• Pitch of 2.77 mm


• IDC (Insulation-Displacement Contact) termination method


• Voltage rating of 250 V

RS Pro Datasheet
