RS PRO 25 Way Right Angle Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

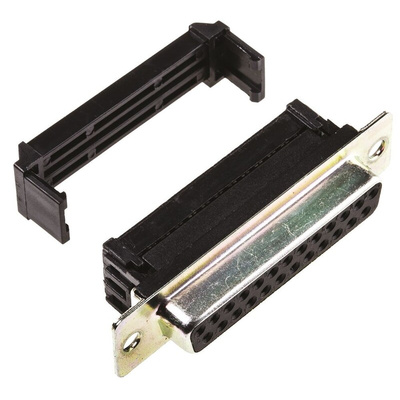

RS PRO 25-Way Right-Angle Cable Mount D-Sub Connector Socket, 2.77 mm Pitch

This 25-way socket from RS PRO lets you insert D-sub cables into an electronic component or device. You can use it to mount a connection on the side or back of an electronic or computing device thanks to its right-angled design.


You can be sure of reliable signal and current transmission as the socket's contacts are made of highly conductive brass. As this material is also heat-resistant, the socket won't overheat. An additional gold-over-nickel layer on the contacts provides protection against moisture and contaminants.


The socket has a steel housing to protect it against damage. It's coated in zinc for resistance to rust and corrosion. This product has been tested for quality and consistency.

Features and Benefits

• Right angle body orientation


• Brass contact material


• Gold-over-nickel contact plating


• Current rating of 3 A


• Dimensions of 53.05 (length) x 17.58 (width) x 12.55 mm (depth)


• Female gender


• Zinc-plated steel housing material


• Cable mounting type


• 25 contacts


• Pitch of 2.77 mm


• IDC (Insulation-Displacement Contact) termination method


• Voltage rating of 250 V
