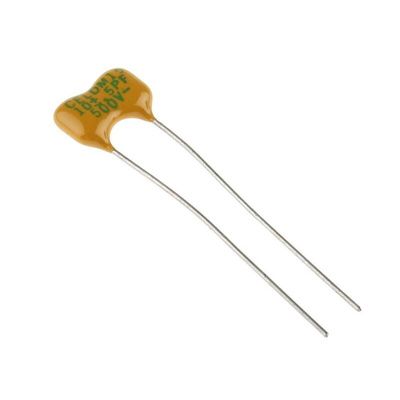

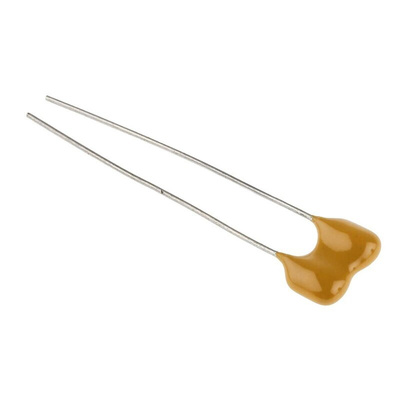

RS PRO 10pF Mica Capacitor 500V dc ±0.5pF Tolerance Radial, Конденсатор

RS PRO Mica Capacitor, 10 pF, 500 V DC, ±0.5 pF Tolerance

Store charge in your circuits simply and reliably with this mica capacitor from RS PRO. The component consists of two silver contacts, with a silver mica dielectric sandwiched in between them. This material offers a high level of stability, with a variance of just ±0.5 pF (picofarad) for a capacitance of 10 pF, making it suitable for precise or high-frequency applications.
The component has a wide operating temperature range of -50°C to +150°C. This makes it ideal for a variety of demanding environments, both indoors and outdoors. It's also encased in an epoxy resin coating, which is highly flame-retardant, so you can rely on its safe operation even when it's exposed to a flame. It's commonly used in instruments and electronics systems in aircraft and missile equipment, as well as logic and transmission circuits in power plants and industrial settings. Engineers have tested this component for safety and quality.

Features and Benefits

• Capacitance of 10 pF (picofarad)
• Tolerance of ±0.5 pF
• Depth of 4.32 mm
• Height of 9.14 mm
• Length of 11.43 mm
• Lead pitch of 5.72 mm
• Maximum operating temperature of +150°C
• Minimum operating temperature of -55°C
• Voltage of 500 V DC
