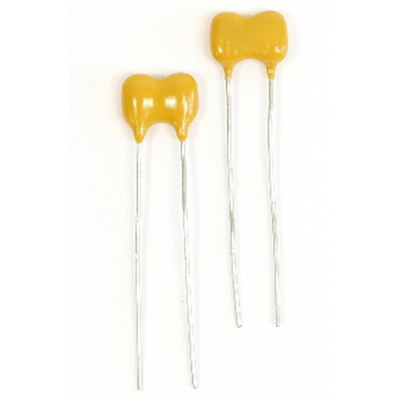

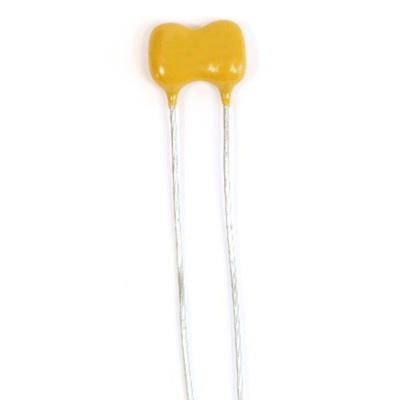

RS PRO 15pF Mica Capacitor 500V dc ±0.5pF Tolerance Radial, Конденсатор

RS PRO Mica Capacitor, 15 pF, 500 V DC, ±0.5 pF Tolerance

Need to store charge in your circuits? Use this RS PRO mica capacitor. The component has two silver contacts, with a silver mica dielectric sandwiched in between them. This material offers a high level of stability, with a variance of just ±0.5 pF (picofarad) for a capacitance of 15 pF. This makes it a good choice for use in precise or high-frequency applications.


This part is suitable for use in a range of demanding indoor and outdoor environments, as it has a broad operating temperature range of -55°C to +150°C. It's highly flame-retardant thanks to the epoxy resin coating on the outer case. This means that it will operate safely even if exposed to fire.


This product has been stringently tested by engineers for quality and safety. A part like this one is frequently used in electronics systems and instruments used in aircraft, in addition to transmission and logic circuits in power plants.

Features and Benefits

• Capacitance of 15 pF (picofarad)


• Tolerance of ±0.5 pF


• Depth of 4.32 mm


• Height of 9.14 mm


• Length of 11.43 mm


• Lead pitch of 5.72 mm


• Maximum operating temperature of +150°C


• Minimum operating temperature of -55°C


• Voltage of 500 V DC


• Mica dielectric material
