RS PRO 330pF Mica Capacitor 500V dc ±1% Tolerance Radial, Конденсатор

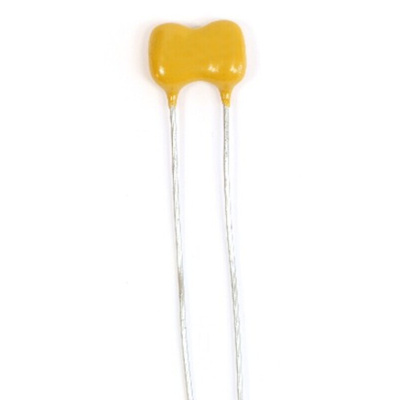

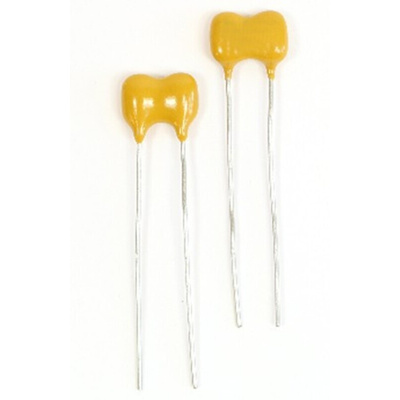

RS PRO Mica Capacitor, 330 pF, 500 V DC, ±1% Tolerance

Use this RS PRO mica capacitor if you need to store charge in your circuits. The component has two silver contacts, with a silver mica dielectric sandwiched in between them. This makes it suitable for precise or high-frequency applications as the silver material offers a high level of stability, with a variance of just ±1% for a capacitance of 330 pF (picofarad).


This product is suitable for use in a range of demanding indoor and outdoor environments, thanks to its wide operating temperature range of -55°C to +150°C. It's also highly flame-retardant, as the outer case is coated in epoxy resin. This means that even if it's exposed to a flame, the part will operate safely. A part like this one is frequently used in electronics systems and instruments used in aircraft, in addition to transmission and logic circuits in power plants. Engineers have rigorously tested this part for quality and safety.

Features and Benefits

• Capacitance of 330 pF (picofarad)


• Tolerance of ±1%


• Depth of 5.33 mm


• Height of 9.91 mm


• Length of 11.94 mm


• Lead pitch of 5.72 mm


• Maximum operating temperature of +150°C


• Minimum operating temperature of -55°C


• Voltage of 500 V DC


• Mica dielectric material
