T0056105699N, Weller Electric Soldering Iron, 230V, 200W, Паяльник

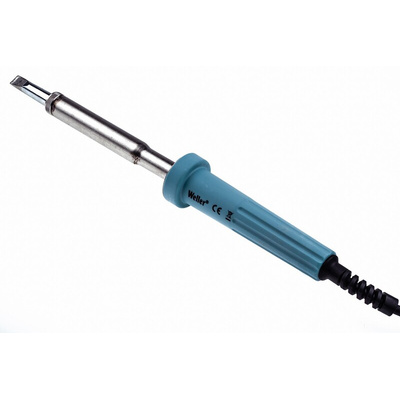

W201, 200 W Magnastat Line Voltage Soldering Iron.

Weller W201 Magnastat controlled electric soldering iron is an amazing solder tool suppled with a CT2 F7 soldering iron tip and a solder safety rest. A Magnastat solder system works through a ferro-magnetic sensor and changes the character of the system when required temperatures are reached and in turn operates the built-in magnet and the power supply switch. The soldering system is truly versatile, providing additional power when soldering, reducing power when not in use and switching on and off quickly. Various types of soldering are possible with the pre-selected soldering tip temperatures available through changing the temperature sensing soldering tip.

Features and Benefits.

• Model W 201 Magnastat soldering iron.


• Line voltage.


• Built-in ferro magnetic sensing system.


• Voltage 230 V ac.


• Power 200 W.


• Tip type HM.


• Tip range CT2 (LT, PT).


• Temperature range to 370°C.


• ESD safe.

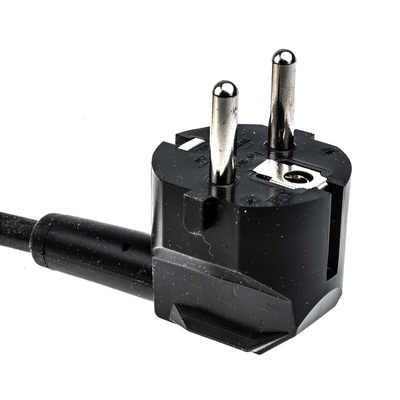

• EMEA power cable.


• Pre-selected solder tip temperatures.


• Versatile soldering iron.

Soldering Tip Temperature Ranges Available.

• 260°C.


• 310°C.


• 370°C.


• 425°C.


• 480°C.

What is Included?

• W 201 Soldering Iron.


• Soldering safety rest.

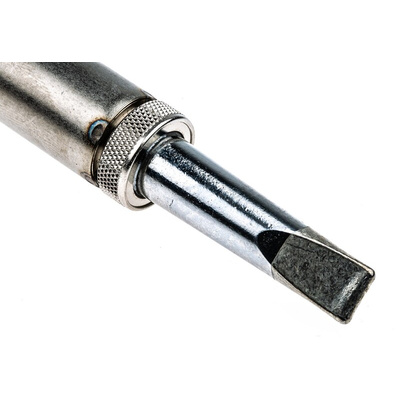

• CT2 F7 soldering tip.

Weller Solder Tips and Cleaners Available.

• CT2F7 10 mm Straight Chisel soldering tip, stock number 661958.


• CT2E7 7 mm Straight Chisel soldering tip, stock number 661942.


• CT2E8 7mm Straight Chisel soldering tip, stock number 661964.


• CT2EX7 7 mm Bent Chisel soldering tip, stock number 1622465.


• WDC Soldering iron tip cleaner, stock number 5178546.

Other Magnastat Soldering Irons Available.

• W61 Electric soldering iron, type F Schuko plug, stock number 1626760.


• TCP 12 Electric soldering iron, stock number 1628075.


• TCP S Electric soldering iron, stock number 516268.
