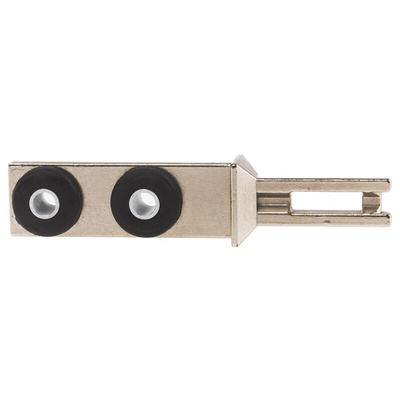

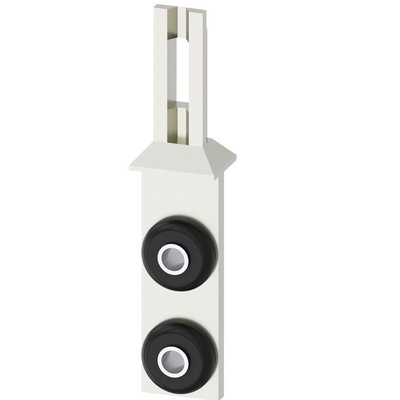

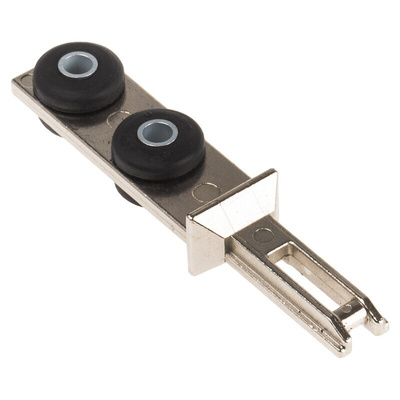

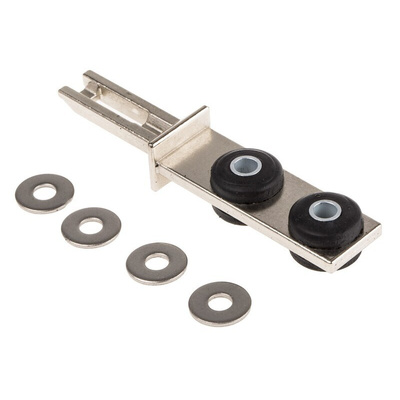

3SE5000-0AV01, Siemens Standard Actuator Head for Use with 3SE5 Limit Switch

Siemens Actuator Head, Screw Terminals, Die-Cast Zinc Construction - SIRIUS Series - 3SE5000-0AV01

Ramp up workplace safety with this actuator head from Siemens. It's used with a 3SE5 limit switch (such as 684-2908) to prevent machinery from operating when protective doors or guards are open. Simply mount this product directly onto the door and connect it to the switch. With the safety barrier closed, the actuator head will engage the switch and ensure that power flows through the circuit. If the barrier opens or is thrown out of alignment, the actuator will move and break the circuit immediately, keeping personnel safe from machine hazards. As it's a good all-rounder, you can use it in applications like production lines, industrial automation zones and safety interlocks around dangerous machinery.

Features & Benefits

• 30g/11ms of shock resistance makes it suitable for heavy-duty mechanised environments
• Die-cast zinc mechanism is strong and durable
• Long mechanical service life of 1,000,000 switching cycles to ensure it goes the distance
• Simple mounting in any position with screw fixing for hassle-free installation
• Compact dimensions of 75.6 (H) x 15 (W) x 9mm (D) to fit into tight spaces

What temperatures can this actuator head function in?

You can use it safely at temperatures ranging between -25°C and +85°C, so it's a smart choice for use in heavy industrial settings.
