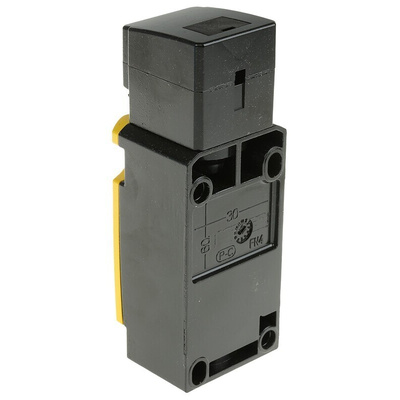

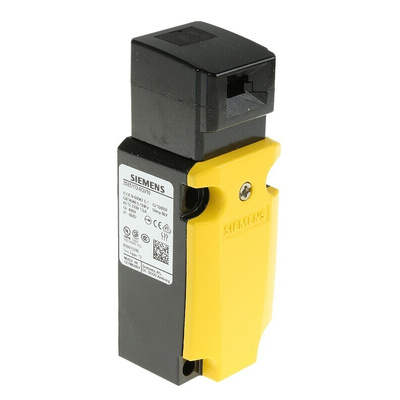

3SE5112-0QV10, Siemens 3SE5 Safety Interlock Switch, 2NC/1NO, Keyed, Metal, Выключатель

Siemens Safety interlock Switch

The Siemens 3SE5 position safety interlock switches are designed to ensure that the safety mechanism on protective doors cannot be deactivated. Also, the multiple mechanical coding of these interlock switches virtually eliminates the possibility of tampering. It has auxiliary contacts of 2NO/1NC configuration with maximum 6A current rating. The separate actuator is mounted directly on the protective door and moves into the opening on the switch when the door is closed. Once the door is opened, the actuator is removed from the switch and the NC contacts open breaking the circuit safely and reliability.
Note:
Actuators must be purchased separately.

Features and Benefits

5 directions of approach, from above and 4 x 90°
Simple, fast wiring offers with around 20% to 25% reduction in connection time
ASI safe electronics are now integrated into the enclosure for additional space saving
LED versions available for on-site diagnosis
Slow action contacts
Screw terminals

Certifications

Cat 4 (EN 954-1)
SIL 3 IEC62061
IP67 rated
