Tektronix TCP404XL Oscilloscope Probe, Probe Type: AC/DC DC to 2 MHz

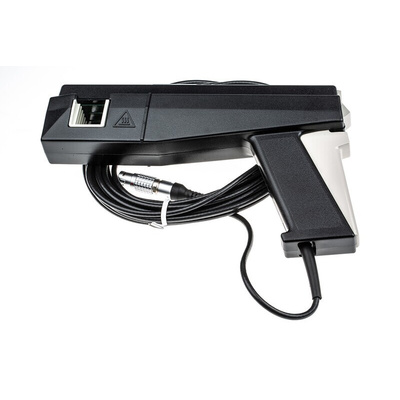

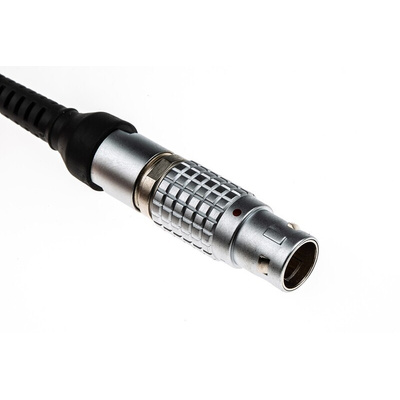

Tektronix Current Probe & Clamp

The Tektronix current probe is a split-core probe that uses both transformer and Hall Effect technology. When connected to Tektronix oscilloscopes with TEKPROBE level II, TekConnect (w/ TCA-BNC), or TekVPI (w/ TPA-BNC) interfaces, the probe makes current measurements and calculations simple and easy.

Features and Benefits

Bandwidth is 2MHz DC
Rise time is less than or equal to175 nanoseconds
Automatic scaling and units
Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
AC/DC input coupling
Low insertion impedance reduces device under test loading

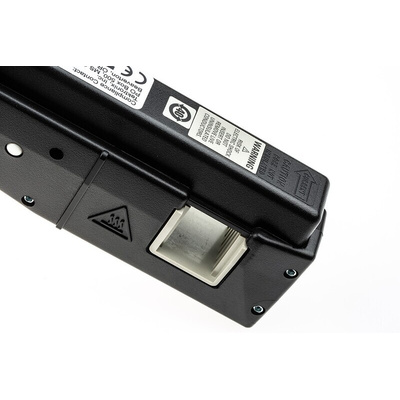

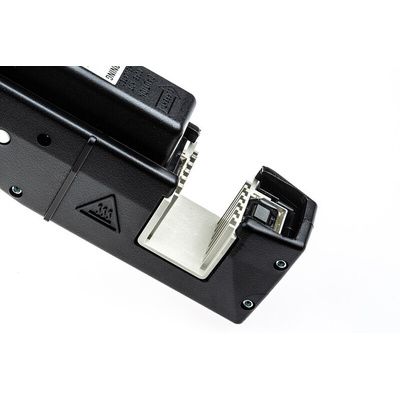

Split-core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions
Degauss, probe open and overload not terminated into 50 O, noncompatible probe type
Low DC drift and noise allows improved low-level current measurements
3rd party safety certification

Applications

Development and analysis solutions for designers, installers, and service personnel in telecom, data communications, computer, and semiconductor power electronics environments
Power supplies (switching and linear)
Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
Power inverters/converters
Electronic ballasts
Industrial/consumer electronics
Mobile communications (phone, satellite, and relay stations)
Motor drives
Transportation systems (electronic vehicles, electric trains, locomotives, and avionics)

Certifications

CAT I 600V
CAT II 600V
CAT III 300V
CAT I
CAT II
CAT III

AC/DC Current Measurement Systems TCPA300 • TCP312 • TCP305 • TCP303 • TCPA400 • TCP404XL Data Sheet
