Tektronix CT1 Current Probe & Clamp

Tektronix Current Probe & Clamp

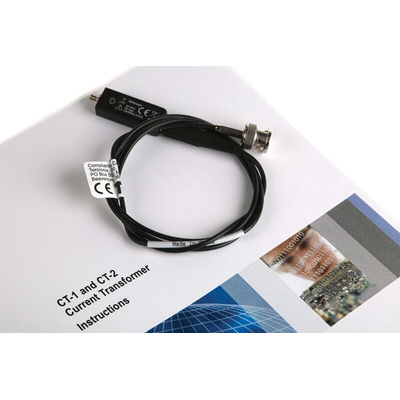

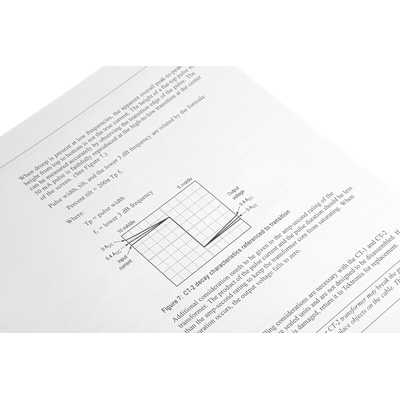

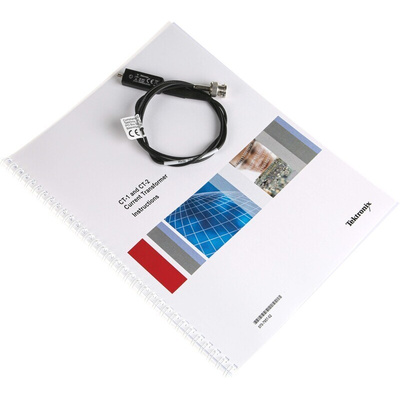

The Tektronix current probes are created for the permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole to pass a current-carrying conductor during circuit assembly.

Features and Benefits

25kHz to 1GHz
Maximum pulse current is 450mA
Maximum CW current is 12A
Sensitivity is 5mV/mA
Accuracy is ±3 %
Probe type is AC only
Solid core high bandwidth
Ultra-low inductance
Very small form factor
Characterize current waveforms up to less than 200 per second rise times
Very low loading of circuit under test
Fits into dense, closely-spaced circuit designs

Applications

Data storage read channel design
Silicon characterization
High-frequency analogue design
ESD testing
Signal injection
Differential current measurements
Single-shot low rep-rate pulse measurements
Propagation delay measurement

Certifications

UL3111-2-032
CSA1010.2.032
EN61010-2-032
IEC61010-2-032

AC Current Probes CT1 - CT2 - CT6
