Tektronix TCPA400 Oscilloscope Probe, Probe Type: AC/DC DC → 2 MHz

Tektronix Current Probe & Clamp

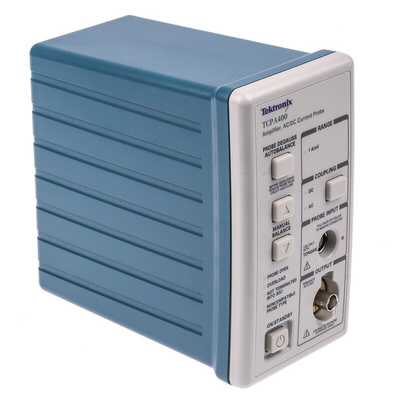

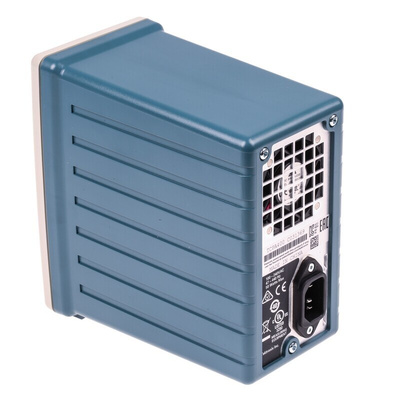

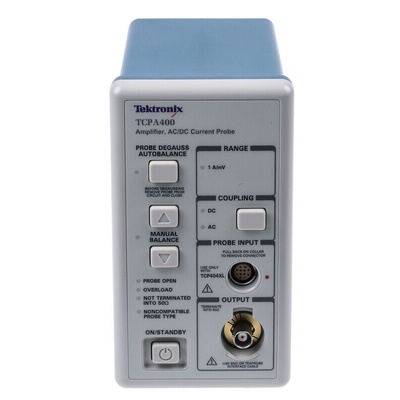

The Tektronix current probe amplifier is a state of the art device used with the Tektronix TCP404XL probe. It also seamlessly integrates with the Tektronix TDS series oscilloscopes. When used with this probe, the current probe amplifier provides a wide range of current measurement capabilities. Also, it spans the gap between low-level milliamp measurements to very high current levels for simple and easy current measurements and calculations.

Features and Benefits

AC/DC measurement capabilities
DC– 100MHz
Automatic scaling and units 2– oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
AC/DC input coupling
Low insertion impedance reduces device under test loading
Split-core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions– degauss, probe open, overload, not terminated into 50Ohm, noncompatible probe type
Lower DC drift and noise allows improved low-level current measurements

Applications

Development and analysis solutions for designers, installers, and service personnel in telecomm, data communications, computer, and semiconductor power electronics environments for:
Power supplies (switching and linear)
Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
Power inverters/converters
Electronic ballasts
Industrial/consumer electronics
Mobile communications (phone, satellite, and relay stations)
Motor drives
Transportation systems (electronic vehicles, electric trains, locomotives, and avionics)

Certifications

CAT I 600V
CAT II 600V
CAT III 300V
CAT I
CAT II
CAT III
ICE standard

AC/DC Current Measurement Systems TCPA300 • TCP312 • TCP305 • TCP303 • TCPA400 • TCP404XL Data Sheet

Instruction Manual
