Eplax Switching Power Supply, 116-010066F, 24V dc, 2.5A, 60W, 1 Output, 115 V ac, 230 V ac Input Voltage, Источник питания

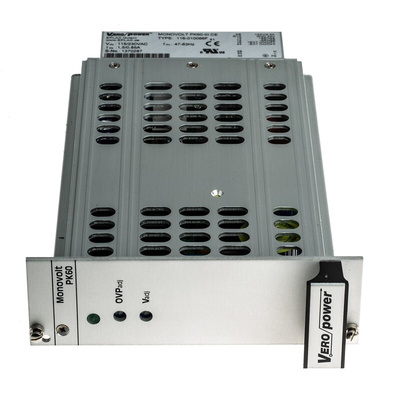

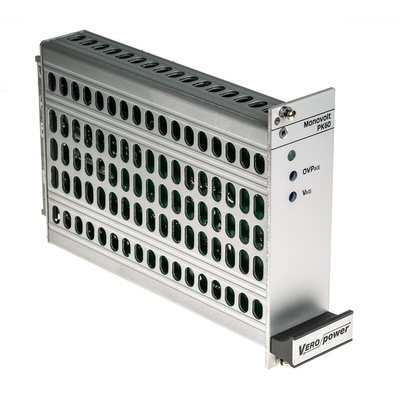

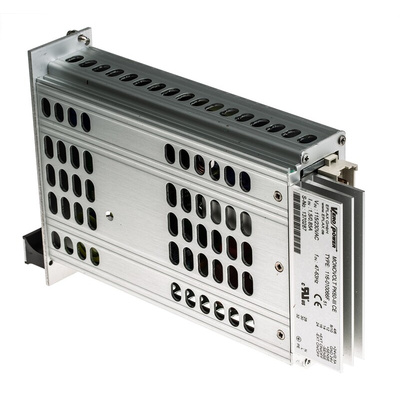

Eplax Embedded Switch Mode Power Supply

The Eplax PK series embedded switch mode power supply is a 60W, AC to DC plug-in device with single output in 3U euro cassettes for use in 19in subtracts
to DIN 41494. It has switchable input supply voltage rating of 115VAC to 230VAC at 47Hz to 63Hz frequency. The hold-up time is greater than 20msec.

Features and Benefits

Adjustable output voltage ±10%
Compact rugged design in stable aluminium cassette
Convection cooling
High regulation accuracy
In-built EMI filter to VDE level B
Output 1 with sensor operation
Output currents is 2.5A
Output voltage is 24VDC
Outputs 2 and 3 are connected as + and - outputs with common earth
PK60-R for redundant operation
Remote ON/OFF and power fail signal
SENSE-operation and overvoltage protection (OVP)
VERO standardised pinning

Applications

Machine tool industries
Mobile phone chargers
PC/laptops
Security systems such as CCTV cameras

Certifications

CE marked for compliance to EMC and low voltage directives
cUL approved
EN 50082-2
EN 55022/B (0,15-30MHz
30-1000MHz)
EN60950
EN60950
UL approved
UL1950 approved

116-010066F - Data Sheet
