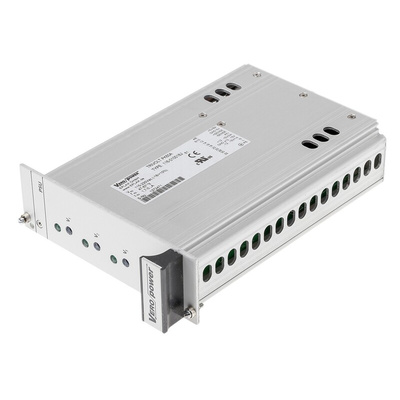

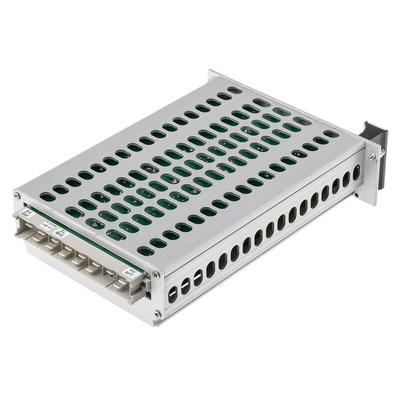

Eplax Switching Power Supply, 116-010018J, 5 V dc, ±15 V dc, 1A, 60W, Triple Output, 94 → 253V ac Input Voltage, Источник питания

Eplax Embedded Switch Mode Power Supply

The Eplax PK series embedded switch mode power supply is a 60W, AC to DC plug-in device with three outputs in 3U euro cassettes for use in 19in subtracts
to DIN 41494. It has switchable input supply voltage rating of 94VAC to 253VAC at 47Hz to 63Hz frequency. The hold-up time is greater than 20msec.

Features and Benefits

Adjustable output voltage ±10%
Coded H15 connector
In-built EMI filter to VDE level B
No-load and short circuit proof
Output 1 with sensor operation
Output current options are 1A and 6A
Outputs 2 and 3 are connected as + and - outputs with common earth
over-voltage protection (OVP)
Power fail signal
SENSE operation (5V output)
VERO standardised pinning
Voltages available are 12 to 15V, -12 to 15V, 5V

Applications

Machine tool industries
Mobile phone chargers
PC/laptops
Security systems such as CCTV cameras

Certifications

CE marked for compliance to EMC and low voltage directives
cUL approved
EN 50082-2
EN 55022/B (0,15-30MHz
30-1000MHz)
EN60950
UL1950 approved

894-700068L-10 - Data Sheet
