RS PRO Card Mounting Bracket for Use with KM6-II Sub Rack System

Card Mounting Bracket

Metal or plastic mounting brackets for use with card fronts
Fixings supplied

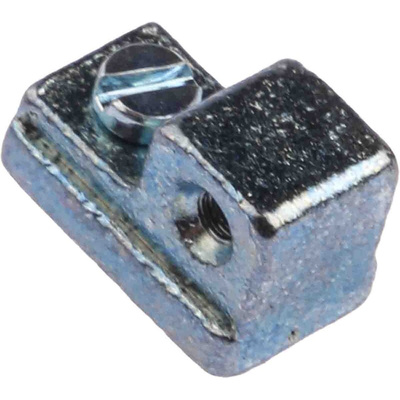

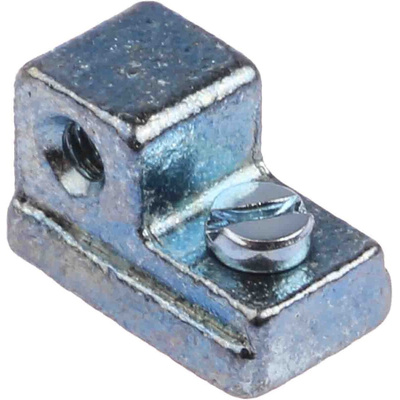

RS PRO Metal Card Bracket, for use with KM6-11 Subrack

Introducing the RS PRO PCB mounting bracket, compatible for use with the universal KM6-11 subrack system. This standard PCB (printed circuit board) metal card bracket is used where front panels are mounted into subracks and case frames and need the conventional 2.54 mm gap between the rear of the front panel and the PCB. The die-cast metal mounting bracket offers durability and dimensional stability, as well as heat resistance which is ideal for use in harsh environments. In addition to this, the mounting bracket is tapped in both axes, making assembly much quicker and easier.

Features and Benefits:

• The RS PRO metal card bracket is compatible for use with the universal KM6-11 subrack system, allowing versatility and a cost-effective option for replacement parts


• Used to achieve the conventional 2.54 mm gap between the rear of the front panel and the PCB


• The bracket is made from die-cast metal which offers durability and heat resistance


• Additionally, the part is tapped in both axes for quick and easy assembly

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

KM6-II Sub-rack System Universal Part Pieces Accessories

These components are for the easy-to-assemble KM6-II sub-rack system which meet the requirements of IEC297-3 and are ideal for applications where external vibration is a factor to be considered. They feature an 84HP (426mm) total useable width. Kits for EMC compatibility are available.
