Keysight Technologies U1180A Thermocouple Adapter

Keysight U1241B & U1242B Multimeters

These Keysight U1240 Series handheld digital multimeters are the latest in the Series and have distinctive orange casing. The U1241B ( 699-7357 ) and U1242B ( 699-7351 ) are typical of the series in that they enable users to check more with wider measurement ranges. Additional features of the U1242B are: manual data logging; built-in switch counter; harmonic ratio; dual/differential temperature capabilities.

10,000 count back lit display with analogue bargraph
Autoranging with MIN/MAX recording and HOLD
True RMS Vac and Aac measurement
Resistance, capacitance, frequency, continuity, diode test
Type K thermocouple input temperature measurement: (Requires U1180A thermocouple adaptor)
Safety Rating EN61010-1CAT IV 600V, CAT III 1000V
Dimensions: 193.8 x 92.2 x 58.0 mm; Weight 450g

U1242B Additional Features:

Stores 100 data points manually or logs data up to 200 data points
Switch counter for detecting and counting switch, relay or pushbutton contact bounce
0 - 99.9% Harmonic ratio measurement (40 to 500Hz) to verify the presence of harmonics in AC signals
Dual Type K thermocouple inputs: providing dual / differential temperature measurement

Note

U1174A soft carry case available separately see stock no. 501-314
U1180A thermocouple adapter and type J & K bead thermocouple set available separately see stock no. 501-336

Supplied with

Test lead set, 4 AAA alkaline batteries, certificate of calibration and instructions on CDROM

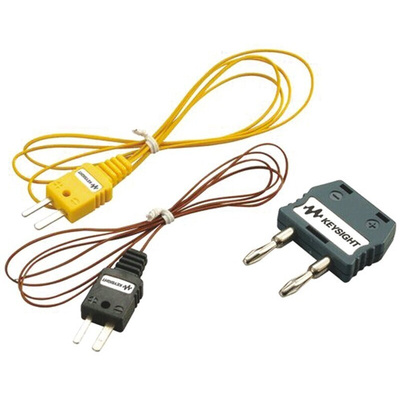

Keysight Technologies Multimeter Application Adapter, Thermocouple Type, For Use With U1250A Series - U1180A

Looking for a simple way to measure temperatures with your digital multimeter? Choose this thermocouple adapter and lead set from Keysight Technologies. It includes both type J and type K thermocouple beads for versatility. The set is compatible with handheld multimeters in the U1250A series for ease of assembly. Thanks to a wire temperature rating between -20°C and +200°C, you can collect results in demanding environments.

Features & Benefits

• Robust plastic housings with strain relief to protect contacts against damage
• Colour-coded J and K attachments for ease of identification
• Clearly marked poles for greater ease of use

Applications

• Industrial equipment testing
• Home appliances
• Construction industry
• Automotive applications
• Power stations

What's the difference between a type J and type K thermocouple?

While a type J thermocouple is made of iron and constantan, a type K thermocouple is made of chrome and alumel for enhanced resistance to corrosion and acids.

What's the difference between a voltmeter and a multimeter?

A voltmeter only measures differences in voltage between two points in a circuit, while a multimeter can measure multiple properties, including frequency, capacitance and resistance.
