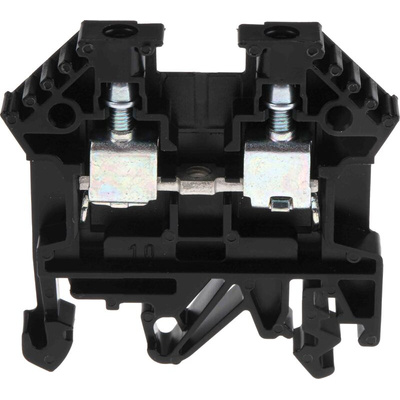

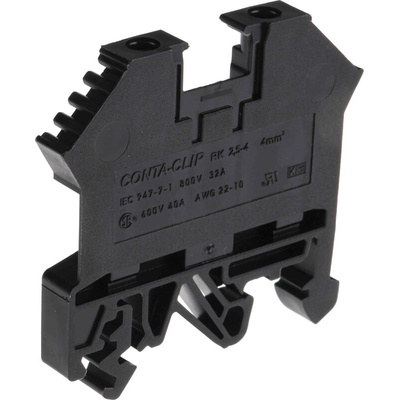

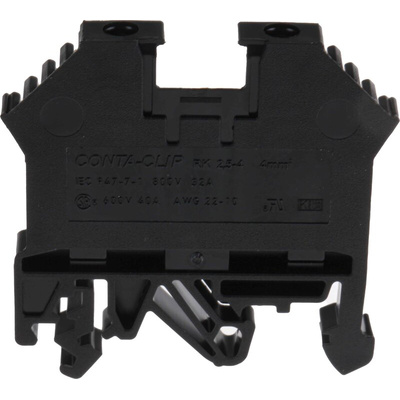

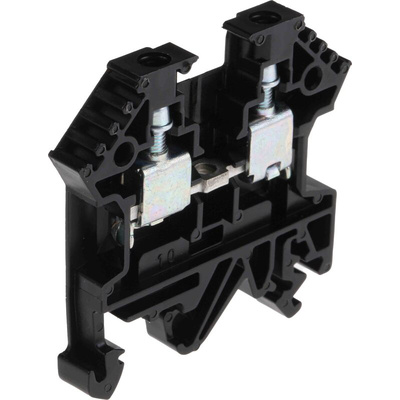

RS PRO Black DIN Rail Terminal Block, 0.2 → 4mm², Single-Level

RS PRO Black Standard DIN Rail Terminal, 0.2 to 4 mm², 800 V

Use this terminal block from RS PRO if you're working with complex electrical equipment. It's designed to protect your electrical system from being damaged by short circuits and overcurrent. It's easy to install, as you can simply attach it to a DIN rail.


The black terminal colour matches the cables that are passed through it, minimising the risk of wiring errors. This also allows you to quickly identify voltages or signals. It's constructed with a nylon 66 material that offers both excellent insulation and mechanical strength. This means it's a durable and safe choice for use in demanding environments.


For added flexibility, the terminal block supports wire sizes of 0.2 to 4 mm². Thanks to its high voltage rating of 800 V, it's suitable for use in a variety of demanding electrical applications.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 4 mm²


• Black colour


• Current rating of 32 A


• Operating temperature range of -40°C to +105°C


• Single level


• Voltage rating of 800 V


• Wire size of 0.2 to 4 mm²

RS Pro Datasheet
