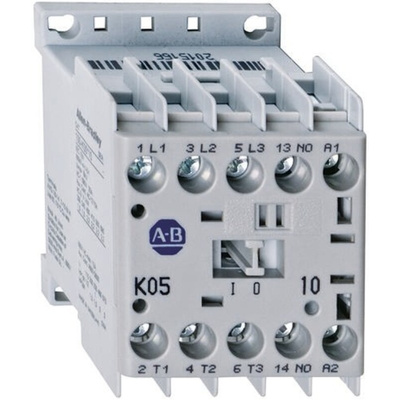

100-K05KF10, Allen Bradley 100 Series 100K 3 Pole Contactor - 5 A, 230 V ac Coil, 3NO, 2.2 kW, Контактор

100K Miniature Contactors

Allen-Bradley Bulletin 100-K miniature contactors are designed for commercial and light industrial applications where panel space is at a premium. These miniature devices, while 45 mm wide, are shallower and have less panel depth requirements than standard IEC contactors.The miniature contactors have been designed with flexibility in mind. They are available with AC or DC operating coils, several contact ratings. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately.

Compact size
Full-voltage non-reversing and reversing contactors
Rated up to 690V
IP2X Finger Protection
Optional integrated surge suppressor
Compatible with Bulletin 193-K bimetallic overload relay
“Mirror contacts” to IEC 60947-4-1 throughout
Mechanically linked contacts to IEC 60947-5-1 on base unit
Dimensions (H)50x(W)45x(D)53mm
3 Pole plus 1 auxiliary contact

Allen Bradley MCS (Modular Control System) Contactors

A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit 'clip-in' method, all add to the class leading features and benefits of the MCS system.

DIN Rail
Surface Mounting

MCS MINIATURE CONTACTORS SELECTION GUIDE
