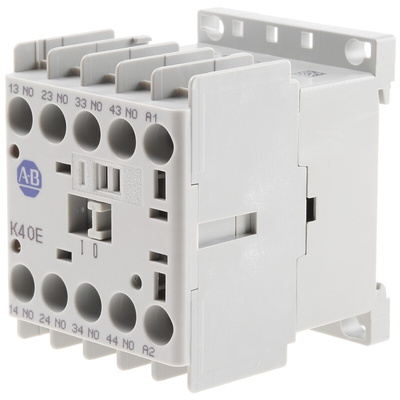

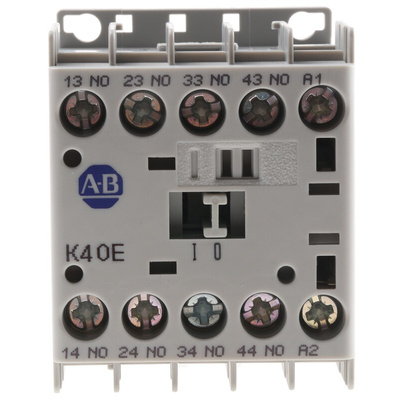

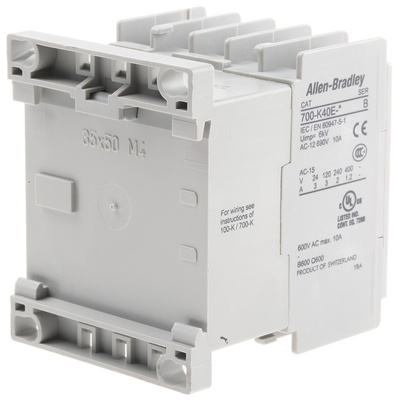

700-K40E-ZJ, Allen Bradley 700K Series Contactor, 24 V dc Coil, 4-Pole, 10 A, 4NO, 690 V ac, Контактор

Allen Bradley IEC Miniature Control Relays 700-K

Safeguard your motor with the 700-K series of IEC Miniature Control Relays by Allen Bradley.

These industrial control relays can easily handle low-energy signals. They are perfect for demanding industrial applications due to their incorporated features such as timing options, extended contact life, and mechanically linked contacts. They are also space saving and versatile due to their small size. The IEC design ensures that these control relays meet high international standards for quality and safety. They are also compatible with the same accessories as the 100 IEC contactors, allowing you to easily create and personalise your perfect motor control system.

Features and Benefits:

• IEC industrial relay
• Enhanced safety due to IP2X Finger Protection rating
• Convenient small size ensures application flexibility
• Increased reliability due to bifurcated contacts - Ideal for low-level signals
• Optional integrated coil protection diode
• Cost-effective - Low power consumption and long life
• Switch up to 690V AC and DC
• Easy installation - Can be DIN rail or panel mounted

Allen Bradley industrial components, from Rockwell Automation, are designed, tested and manufactured to meet high global standards for quality, reliability and safety. Their innovative devices ensure that you can find the ideal solution for your specific application at a reasonable price. They also offer a high-level of support to keep your processes running efficiently.

Standards:

IEC/EN 60947-1,-5-1,-5-4
UL 508
CSA 22.2. No. 14
NF F 62-000

Approvals:

CE marked
cULus listed (File No. E33916, Guide No. NKCR and NKCR7)

Allen Bradley Miniature Control Relay, 24V DC, 10A - 700-K40E-ZJ

Protect electric motors from current overload with this miniature control relay from Rockwell Automation's Allen Bradley range. Its robust design, combined with high power capacity, makes it suited to demanding industrial applications while still offering an extended service life. Bifurcated contacts on the relay enhance its switching precision for high levels of reliability. An enclosure with an IP2X (ingress protection) rating offers increased operator protection against accidental contact with the unit's terminals. The device is easy to install and takes up minimal space in your control panel.

Features and Benefits

• High flexibility for easy tailoring to application needs
• Sturdy, moulded wiring kits to make assembly fast and easy
• Low coil consumption so the contactor can be directly controlled by a PLC (programmable logic controller)
• 6mm distance from housing to live parts for improved system and operator safety

Standards and certifications

• IEC (International Electrotechnical Commission)
• EN (European Norm)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Authority)
• RoHS (Restriction of Hazardous Substances)

Which applications is this relay suitable for?

Besides motor protection, this miniature safety device is a good choice for the switching of illumination or heating loads up to 20A. It also provides reliable switching for signals down to 15V or 2mA.
