Vero Technologies 220-42779J, 64 Way Double Sided DIN 41612 Extender Board Extender Board FR4

Width Adaptable Extender Board (PTH)

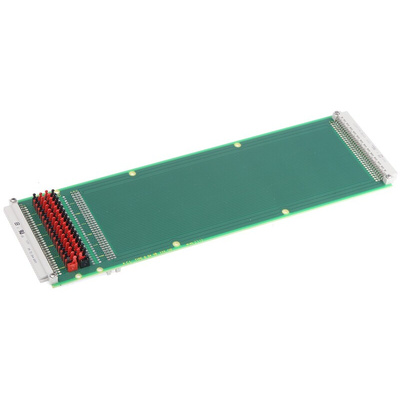

Double sided pth glass fibre extender boards for use with both 160mm and 220mm deep Eurocards in 64-way or 96-way DIN 41612 connector options.

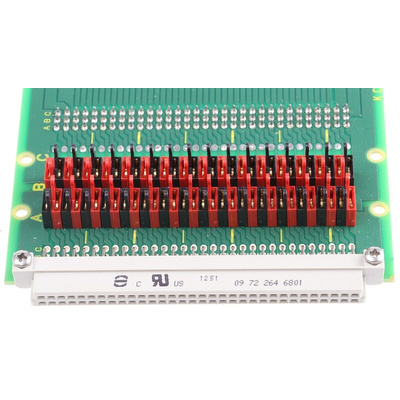

Plug link facility for disconnection of each line allows voltage/logic status checks etc.
Plug links arranged in rows of 32

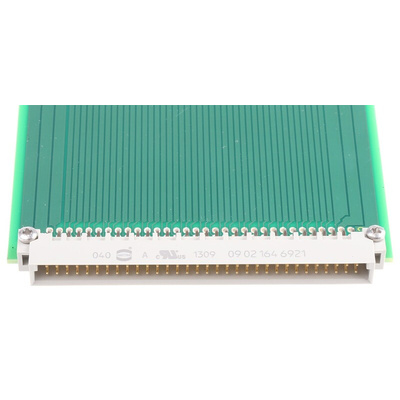

Fitted at each end with DIN41612 indirect edge connectors
64-way fitted with connector for logic analyser or bus termination (provision for one on 96-way)

Note

By using additional extender boards and optional spacer kit, extenders may be constructed for 6U, 9U, 12U widths etc.

Supplied with

2 support arms/ejectors

PC / VME Bus Boards

PC Compatible Prototyping Boards

Prototyping boards manufactured from epoxy glass material to BS 4584 part 3 or 16. Card thickness is 1.6 mm. Copper is 305 g/m² (1 oz/ft²). Edge connector fingers are gold plated to a thickness of 1.5 microns. 1.0 mm (0.040 in.). Diameter holes are pre-drilled on a 2.54 mm (0.1 in.) matrix.

Microboard Pattern

Incorporates, on the component side of the card, a colander ground plane for maximum screening and glitch free high speed operation, and complete solder mask protection.
