100-K05D10, Allen Bradley 100K Series Contactor, 110 V ac Coil, 3-Pole, 5 A, 2.2 kW, 3NO, 690 V ac, Контактор

Allen Bradley 100-K Miniature Contactors

The Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe, and efficient switching capabilities for your motor control system, giving you maximum performance in a small package.

These miniature units have less panel depth requirements and are shallower than standard IEC contactors. They are available with several contact ratings and AC or DC operating coils. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately. These cost-saving contactors are rated up to 690V and have 3 Poles plus 1 Auxiliary contact. The dimensions are: (H) 50 x (W) 45 x (D) 53mm.

These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds.

Features and Benefits:

• Compact size, allowing broader application use
• Choice of full-voltage non-reversing and reversing contactors
• AC and DC have the same dimensions
• IP2X Finger Protection for improved safety
• Optional integrated surge suppressor
• Fully compatible with Bulletin 193-K bimetallic overload relay
• Mechanically linked contacts to IEC 60947-5-1 on base unit
• “Mirror contacts” to IEC 60947-4-1 throughout

Certifications:

CE Marked
cULus Listed (File No. E41850, Guide NLDX, NLDX7)
CCC
Suitable for use with IE3 Motors (IEC 60034-30)

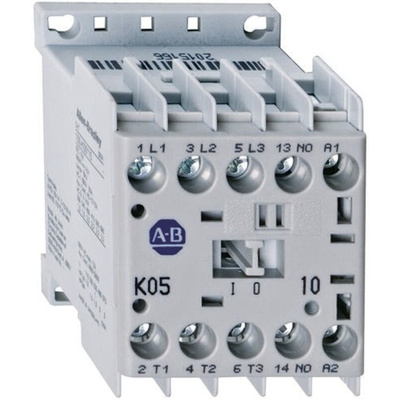

Allen Bradley 3-Pole Contactor, 5A, 2.2kW - 100-K05D10

This 3-pole contactor from Rockwell Automation's Allen Bradley range is used to perform switching functions in a variety of commercial and light industrial applications. With a power rating of 2.2kW, this component is ideally suited to high-current load devices. Its 3-pole configuration means that it can control 3 circuits at the same time, so it's a good choice for setups with limited space. It's also designed so its terminal points are out of reach of fingers, meaning it's a safe and reliable option for industrial use.

• Modular design for ease of installation and ample allowance for extra accessories• Thermoplastic housing material for insulation and impact resistance• Can function with both alternating current (AC) and direct current (DC) supply voltages for versatility • Forked contacts for a strong and reliable connection

Standards and Certifications

• CE (Conformité Européenne)• cULus (Underwriters Laboratory U.S and Canada)• CCC (China Compulsory Certificate)

What could cause contactor failure?

There are two main reasons why a contactor might fail. The first is that it may have become earthed through another metal component when its wiring insulation deteriorates. Another may be that it's stuck in the open position. A physical check should be enough to detect either of these faults.

Allen Bradley MCS (Modular Control System) Contactors:

MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.

MCS features:

• A wide range of accessories available to cater for many diverse needs
• The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
• The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
• A modular design concept and an easy to fit 'clip-in' method
• Simple and fast DIN Rail and Surface Mounting

MCS MINIATURE CONTACTORS SELECTION GUIDE
