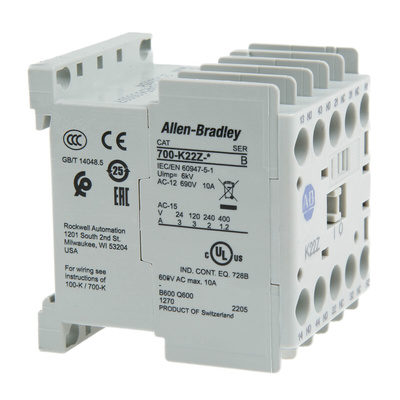

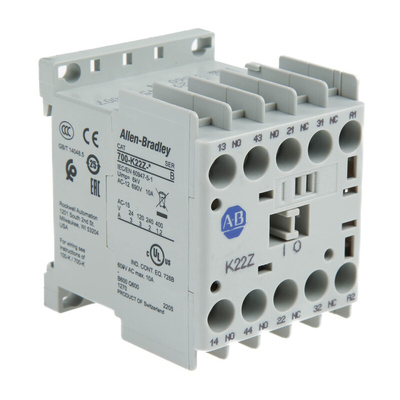

700-K22Z-KF, Allen Bradley 700K Series Contactor, 230 V ac Coil, 4-Pole, 10 A, 2NC, 690 V ac, Контактор

Allen Bradley IEC Miniature Control Relays 700-K

Safeguard your motor with the 700-K series of IEC Miniature Control Relays by Allen Bradley.

These industrial control relays can easily handle low-energy signals. They are perfect for demanding industrial applications due to their incorporated features such as timing options, extended contact life, and mechanically linked contacts. They are also space saving and versatile due to their small size. The IEC design ensures that these control relays meet high international standards for quality and safety. They are also compatible with the same accessories as the 100 IEC contactors, allowing you to easily create and personalise your perfect motor control system.

Features and Benefits:

• IEC industrial relay
• Enhanced safety due to IP2X Finger Protection rating
• Convenient small size ensures application flexibility
• Increased reliability due to bifurcated contacts - Ideal for low-level signals
• Optional integrated coil protection diode
• Cost-effective - Low power consumption and long life
• Switch up to 690V AC and DC
• Easy installation - Can be DIN rail or panel mounted

Allen Bradley industrial components, from Rockwell Automation, are designed, tested and manufactured to meet high global standards for quality, reliability and safety. Their innovative devices ensure that you can find the ideal solution for your specific application at a reasonable price. They also offer a high-level of support to keep your processes running efficiently.

Standards:

IEC/EN 60947-1,-5-1,-5-4
UL 508
CSA 22.2. No. 14
NF F 62-000

Approvals:

CE marked
cULus listed (File No. E33916, Guide No. NKCR and NKCR7)

Allen Bradley Contactor Relay, 10A, 230V AC - 700-K22Z-KF

This miniature relay from Rockwell Automation's Allen Bradley range safeguards your motors from overloads. Its built-in trip contacts divert the power to the motor in the event of a surge in current, preventing damage to your sensitive electrical components. The unit is shock-resistant, so you don't have to worry about false tripping. It mounts directly onto the contactor, meaning there's no need for complex tools or installation equipment. Thanks to compact dimensions of 108.2 (length) by 44.9 (width) and 78.7mm (depth), this relay is suitable for applications where space is at a premium.

What is an overload relay?

• 4-pole configuration for multi-circuit control with reduced wiring • Screw termination method for simple and secure attachment of cables• Can be panel or DIN rail-mounted for flexibility in your setup • Wide operating temperature range of -55°C to +80°C for use in harsh conditions

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)• IEC (International Electrotechnical Commission)• CSA (Canadian Standards Association)

What's the difference between a relay and a circuit breaker?

A relay is a control device that can divert signals between two different circuits. A circuit breaker is a switching device that can only stop or allow the flow of current in the circuit.

MCS MINIATURE CONTACTORS SELECTION GUIDE

Allen Bradley Relays and Timers Technical Data
