100-K09DJ10, Allen Bradley 100K Series Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Allen Bradley 100-K Miniature Contactors

The Bulletin 100-K Miniature Contactors by Allen Bradley offer optimal flexibility due to their compact size, providing an ideal solution to suit your system requirements. These versatile contactors are specially designed for commercial and light industrial applications where panel space is limited. They ensure reliable, safe, and efficient switching capabilities for your motor control system, giving you maximum performance in a small package.

These miniature units have less panel depth requirements and are shallower than standard IEC contactors. They are available with several contact ratings and AC or DC operating coils. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately. These cost-saving contactors are rated up to 690V and have 3 Poles plus 1 Auxiliary contact. The dimensions are: (H) 50 x (W) 45 x (D) 53mm.

These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds.

Features and Benefits:

• Compact size, allowing broader application use
• Choice of full-voltage non-reversing and reversing contactors
• AC and DC have the same dimensions
• IP2X Finger Protection for improved safety
• Optional integrated surge suppressor
• Fully compatible with Bulletin 193-K bimetallic overload relay
• Mechanically linked contacts to IEC 60947-5-1 on base unit
• “Mirror contacts” to IEC 60947-4-1 throughout

Certifications:

CE Marked
cULus Listed (File No. E41850, Guide NLDX, NLDX7)
CCC
Suitable for use with IE3 Motors (IEC 60034-30)

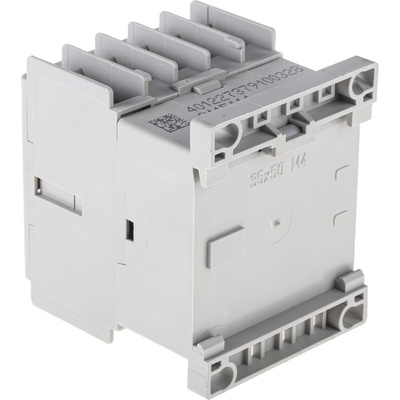

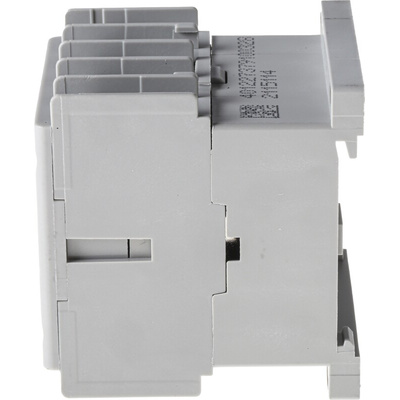

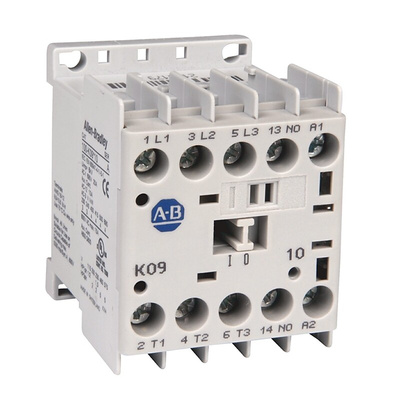

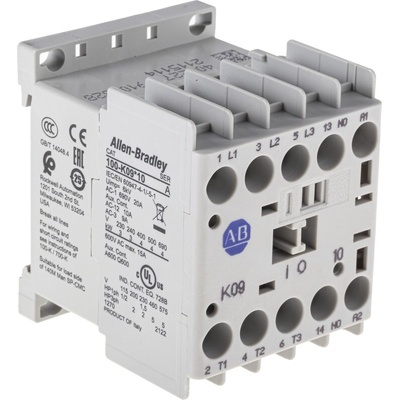

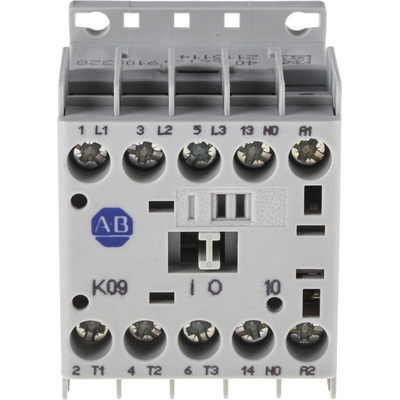

Allen Bradley Miniature Contactor, 24V DC, 9A - 100-K09DJ10

Choose this contactor from Rockwell Automation's Allen Bradley range to control the flow of an electrical circuit in high current carrying applications. You'll find it commonly used in lighting and heating circuits. Its shallow, miniature size makes it ideal for areas where control panel space is limited, while efficient switching capability provides high levels of safety and reliability in motor control systems. Screw terminals make wiring a simple task and provide reliably secure electrical connections that have good resistance to shock and vibration.

Features and Benefits

• IP2X (ingress protection) rated enclosure that prevents operators' fingers from accidentally touching hazardous parts
• Compact dimensions of 108.2 (L) x 44.9 (W) x 82.7mm (D)
• Wide operating temperature range of -25°C to +60°C for versatile use
• High contact voltage rating of 690V AC so suitable for large-scale circuit-control systems

Standards and certifications

• IEC (International Electrotechnical Commission)
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• CCC (China Compulsory Certificate)

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

What's the difference between a contactor and a relay?

Like relays, contactors are used in any device that's frequently switched on and off but are specifically designed to connect to high current load devices. A contactor is also able to switch more than 10A and features high coil voltages, which are not generally found in relays.

Allen Bradley MCS (Modular Control System) Contactors:

MCS is a modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3.

MCS features:

• A wide range of accessories available to cater for many diverse needs
• The ease of assembly, installation and modification provides high cost-efficiency and can reduce the number of parts which need to be held
• The compact size of the component parts offers reduction in enclosure volume required, as well as modern design and weight savings
• A modular design concept and an easy to fit 'clip-in' method
• Simple and fast DIN Rail and Surface Mounting

MCS MINIATURE CONTACTORS SELECTION GUIDE

Bulletin 100 Contactors Brochure

IEC Contactor Specifications
