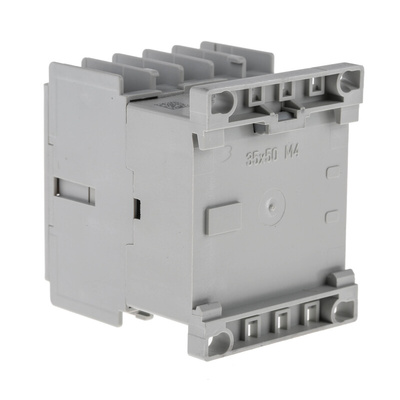

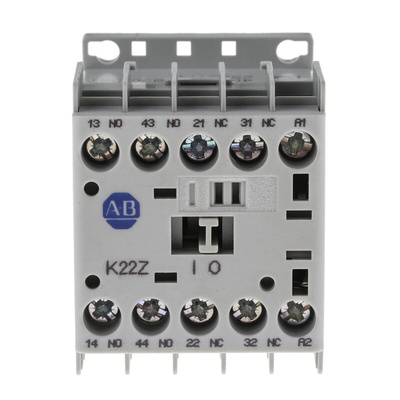

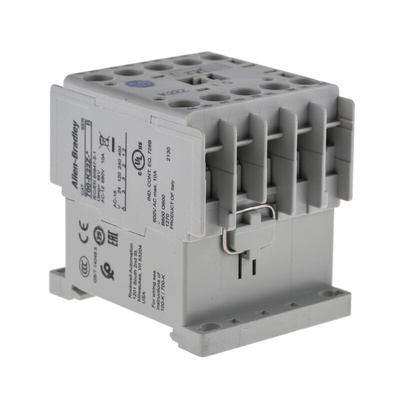

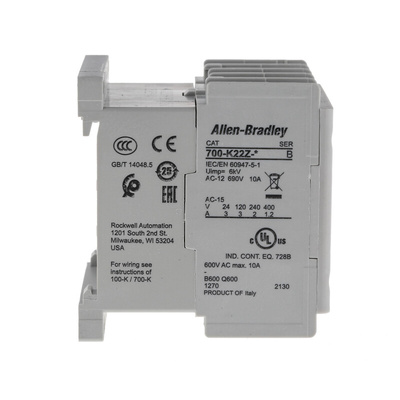

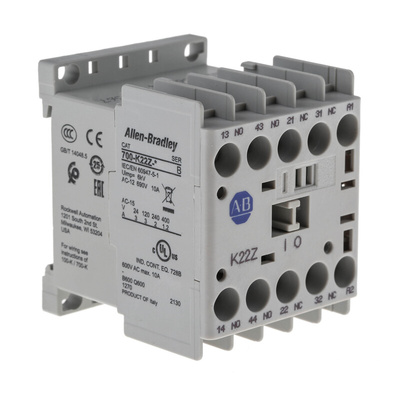

700-K22Z-DJ, Allen Bradley 700K Series Contactor, 24 V dc Coil, 4-Pole, 10 A, 2NC + 2NO, 690 V ac, Контактор

0502408
Номер производителя: 700-K22Z-DJПроизводитель: Allen Bradley
Цена за шт.
23115.30 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Allen Bradley IEC Miniature Control Relays 700-K

Safeguard your motor with the 700-K series of IEC Miniature Control Relays by Allen Bradley.

These industrial control relays can easily handle low-energy signals. They are perfect for demanding industrial applications due to their incorporated features such as timing options, extended contact life, and mechanically linked contacts. They are also space saving and versatile due to their small size. The IEC design ensures that these control relays meet high international standards for quality and safety. They are also compatible with the same accessories as the 100 IEC contactors, allowing you to easily create and personalise your perfect motor control system.

Features and Benefits:

• IEC industrial relay
• Enhanced safety due to IP2X Finger Protection rating
• Convenient small size ensures application flexibility
• Increased reliability due to bifurcated contacts - Ideal for low-level signals
• Optional integrated coil protection diode
• Cost-effective - Low power consumption and long life
• Switch up to 690V AC and DC
• Easy installation - Can be DIN rail or panel mounted

Allen Bradley industrial components, from Rockwell Automation, are designed, tested and manufactured to meet high global standards for quality, reliability and safety. Their innovative devices ensure that you can find the ideal solution for your specific application at a reasonable price. They also offer a high-level of support to keep your processes running efficiently.

Standards:

IEC/EN 60947-1,-5-1,-5-4
UL 508
CSA 22.2. No. 14
NF F 62-000

Approvals:

CE marked
cULus listed (File No. E33916, Guide No. NKCR and NKCR7)

Allen Bradley Contact Relay, 24V DC, 10A - 700-K22Z-DJ

Protect industrial motors from overheating and excess current with this miniature control relay from Rockwell Automation's Allen Bradley range. It easily handles low power signals thanks to its bifurcated contacts, which assist in switching to increase the reliability of your system. The device has low power consumption combined with a long working life. Its space-saving design calls for minimal area in a control panel for maximum packing efficiency. This unit is easy to install and can be mounted on a DIN rail or panel.

Features and Benefits

• High power capacity and can switch up to 690V AC (alternating current) and DC (direct current)
• Enclosure with an IP2X (ingress protection) rating prevents finger access to hazardous parts for high levels of safety
• Mechanically linked contacts for improved safety and high reliability
• Flexibility for easy tailoring to application needs

Standards and certifications

• IEC/EN (International Electrotechnical Commissions / European Norm)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Authority)

How does an overload relay protect an electrical motor?

The purpose of a relay like this one is to monitor the current flow in an electric circuit. If the current rises, the relay automatically trips to stop the flow of power and prevent damage to industrial machinery.

Техническая спецификация
pdfMCS MINIATURE CONTACTORS SELECTION GUIDE
pdfAllen Bradley Relays and Timers Technical Data
Вид монтажа:
Крепление на DIN рейку, Панельный монтаж
Глубина:
78.7мм
Диапазон:
700 Серия
Длина:
108.2мм
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
4
Количество полюсов:
4
Напряжение управления:
24 В пост. тока
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
10 A
Нормальное состояние конфигурации:
2NC + 2NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-55°C
Серия:
700K
Тип клеммы:
Винт
Ширина:
44.9мм
