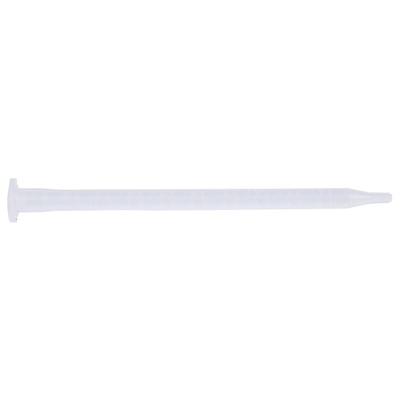

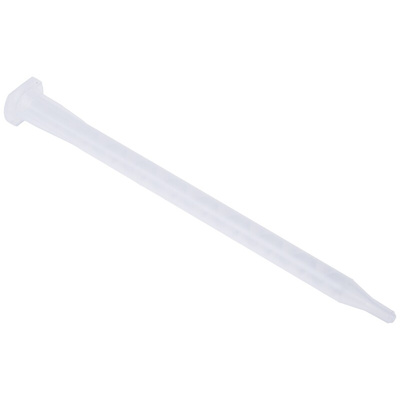

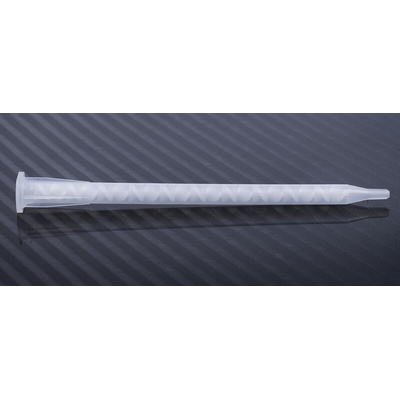

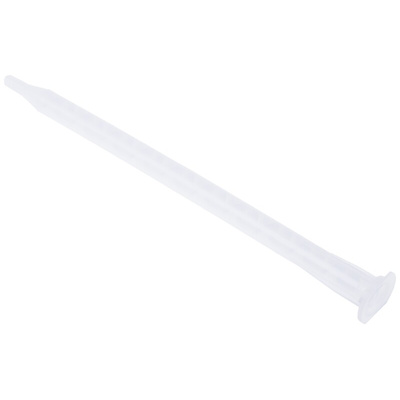

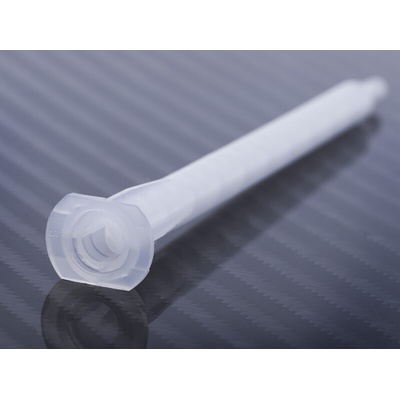

RS PRO Mixer Nozzle, 50.0ml Bayonet 10 Mixing elements 5.9in

RS PRO Epoxy Mixer Nozzle

Introducing the high-quality static mixing nozzle from RS PRO for use with structural adhesive cartridge systems in adhesive dispensing guns (also known as caulking guns). This static mixing nozzle is designed with a helical mixing baffle, which ensures full mixing and a smooth even sealant application. The epoxy mixing nozzle has a bell inlet, which fits Nordson EFD valve manifolds and large volume cartridges that port the two different materials directly into the mixer. Easy to clean by removing the mixer and wiping the manifold. The end of the nozzle can be cut back to increase the bead size of the epoxy applied and the nozzle is constructed from a high-grade, industrial-safe and silicone free polypropylene.

Features and Benefits:

• Supports epoxy, acrylic and methacrylate, adhesives & sealants
• Round mixer profile providing smooth even application
• Fits Nordson EFD valve manifolds
• Bayonet fitting
• Easy to use and can be cut to alter bead size
• Easy to clean
• Designed for 50 ml cartridges of epoxy adhesives

Typical Applications:

RS PRO mixer nozzles are used by professionals and DIY enthusiasts for a smooth and even application to seal or gap fill with adhesive dispensers such caulking guns. Can be used in many jobs from bathrooms to kitchens.

FAQs:

Does longer nozzle ensure better mixing of components?

No, every nozzle is designed in an optimal way to ensure correct components mixing. The length of a nozzle always depends on the size of the cartridge. Simply, for the bigger cartridge, a longer nozzle is required. Please, always read epoxy manufacturers recommendations before selecting the correct size of the nozzle to make sure your fluids or liquids are optimally combined.

Can this static mixer nozzle be used more than once?

Yes, nozzles can be washed and re-used as many times as it's needed. However, it is recommended to use carefully cleaned mixer nozzles to make sure liquids or fluids are properly mixed together. Before re-using a nozzle please, make sure it's been cleaned properly and the syringe plunger is not blocked by any obstacles.
