Fluke Networks Pro3000 Tone Generator, 5 Tone, 1000Hz Tone Frequency

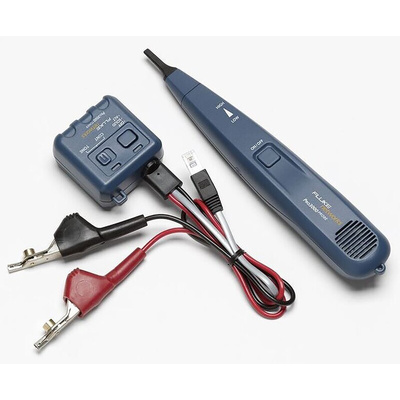

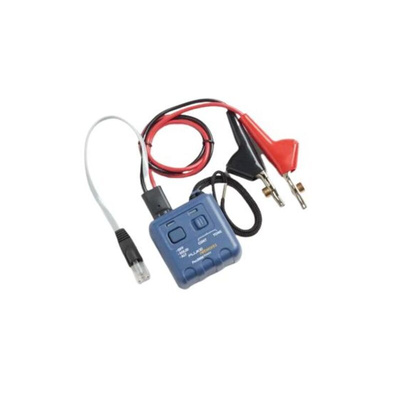

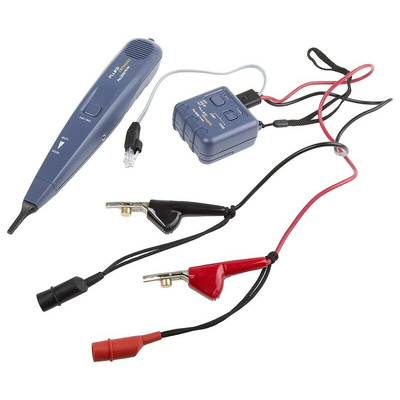

Fluke Networks Pro3000 Analog Tone and Probe Kit

Sleek design and easy to use, Fluke Networks presents this cable tester with SmartTone™ technology. For toning and tracing wire on non-active networks or for identifying individual pairs, angle bed-of-nails clips allow easy access, whilst the RJ11 Ethernet connector is available for telephone jacks. Tone signal can be sent up to 10 miles on most cables for testing.
Featuring a large speaker you can easily hear the tone through walls as it amplifies or in a busy environment and to prevent accidental presses the tester also has recessed switches. An adjustable volume dial and 'Quick-Twist' tip all make light work of finding wires quickly and easily. (Spare tip included)

Features and Benefits:

• Tone and trace wire on non-active networks
• SmartTone™ technology provides five distinct tones for exact pair verification and identification
• Sends loud tone up to 10 m (16 km) on most cables

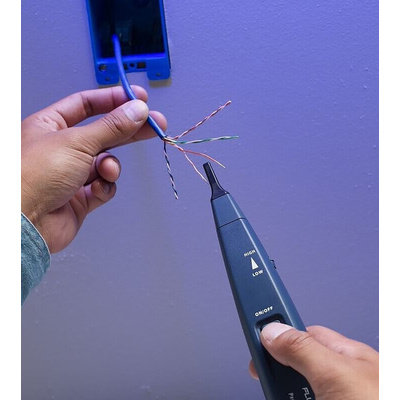

• Loudspeaker on probe makes the tone easier to hear through drywall, wood and other enclosures

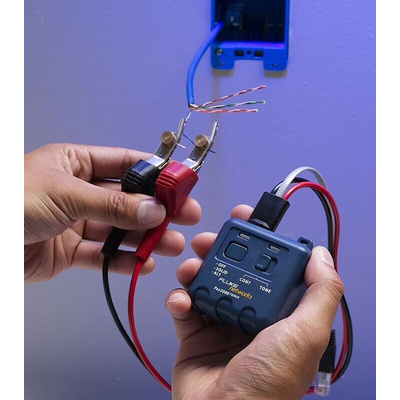

• Angled bed-of-nails clips allow easy access to individual pairs
• RJ-11 connector is ideal for use on telephone jacks

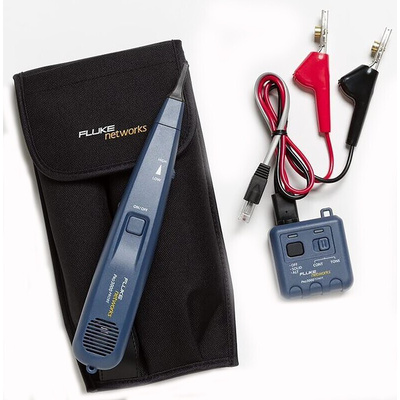

• Attach nylon pouch (included in kit) to your belt for easy transport
• Over Voltage protection 60Vdc in Toner/Polarity mode

FLUKE Tone Generator and Probe Kit, 9V Battery, RJ11 Connector - Pro3000

Uncover those elusive cable faults and hard-to-find connections with this tone generator and probe kit from FLUKE. It contains everything you need for toning and tracing wires. As the tone generator uses SmartTone technology, it helps you identify wire pairs and can send a signal up to 10 miles on most cables. Thanks to the probe's large speaker, you can hear tones easily even through walls and other obstacles.

Features & Benefits

• Continuity testing feature allows you to identify breakages
• Five distinct tones for pair identification
• Supplied with angled bed-of-nails clips and RJ11 connector for easy testing
• Adjustable volume control on probe puts you in the driving seat
• Operating temperature range between -20°C and +60°C, so suitable for testing in challenging environments

Applications

• Electrical engineering
• IT systems
• Laboratory testing

How big is this tone generator and probe kit?

The tone generator has dimensions of 69 (L) x 61 (W) x 36mm (D), and the probe is 249 (L) x 41 (W) x 33mm (D). A handy pouch is provided to hold both, and you can carry this on your belt for quick access.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Pro3000™ Analog Tone and Probe Users Guide

Datasheet
