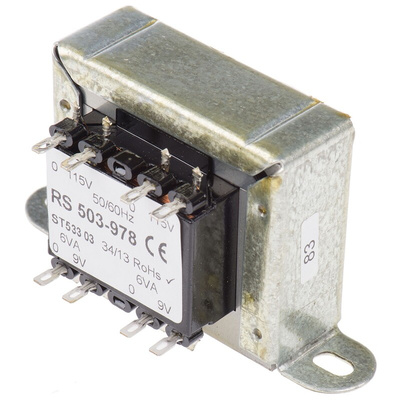

RS PRO 12VA 2 Output Chassis Mounting Transformer, 9V ac, Трансформатор

RS PRO 2 x 115V Chassis Mount Clamp & Frame Isolating Transformer (12 VA)

A chassis mounted clamp and frame isolating transformer suitable for general applications with a full varnish impregnation featuring twin 115 V 50/60Hz windings which can be run in series for double power or double voltage. The two independent secondary windings (2 x 6V) may be connected in series or parallel to give a wide range of output voltage and current options.
Designed with solder tags for simple termination and two 4.7 x 8.7mm slots for quick and easy mounting. A reliable and consistent clamp mount transformer that is easy to install and suitable for a wide range of applications.

Features and Benefits

Chassis mounting Transformer
Isolating transformer
Clamp and frame construction
12Va Power rating
2 x 115V primary windings
2 x 6V secondary windings
Chassis mount
Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
100% electrical and flash tested

For a suitable Transformer Shroud see RS PRO 504-004

Standards and Approvals: UKCA, CE, IEC61558-2-6 / EN61558-2-6, RoHS Compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Open Laminated Clamp & Frame 115-230Vac Primary 6VA to 100VA

Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

RS PRO Datasheet
