RS PRO 12 VA 2 Output Chassis Mounting Transformer, 12 V AC

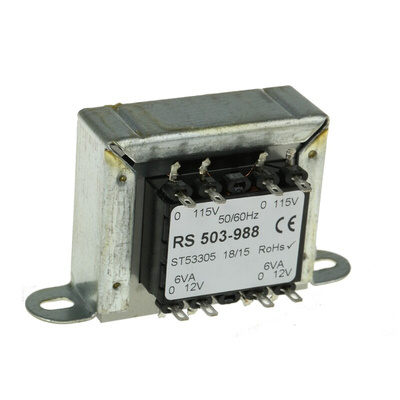

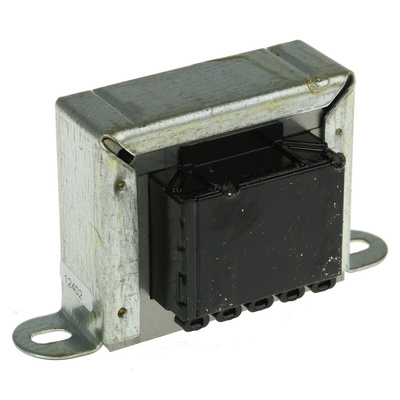

This chassis-mounting transformer from RS PRO steps voltages up or down without altering their frequency. You can connect the unit's two independent secondary windings in series or in parallel, giving you a wide range of output voltage and current options.
The transformer's double-section bobbins are fully shrouded to shield them from electrical interference. Its coils are fully varnish-impregnated for improved dielectric strength.
A two-hole fixing means you can install it with wrap-over clamps and the solder tag terminations allow you to make secure connections. You'll find this transformer useful for electromagnetic and electrical control applications involving pumps, speed changers and heating elements.

Features and Attributes

• Double output
• Clamp mounting
• Power rating of 12 VA
• Operating frequency range of 50 to 60 Hz
• Primary voltage rating of 115 V AC, 230 V AC
• Secondary voltage rating of 12 V AC
• Length of 59 mm
• Width of 50 mm
• Depth of 50 mm
• Fixing hole diameter of 4.7 x 8.7 mm
• Weight of 400 g
• 100% electrical and flash tested
• Tested in accordance with BS 3535 and EN 60742 for isolating transformers safety
