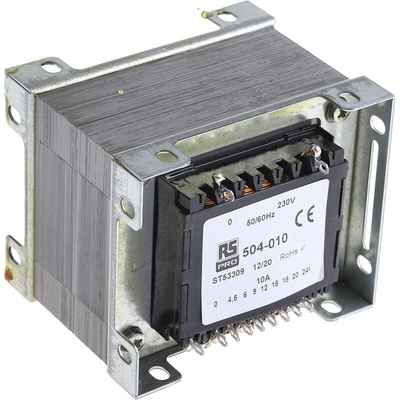

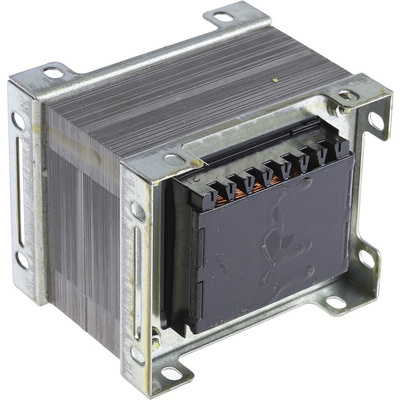

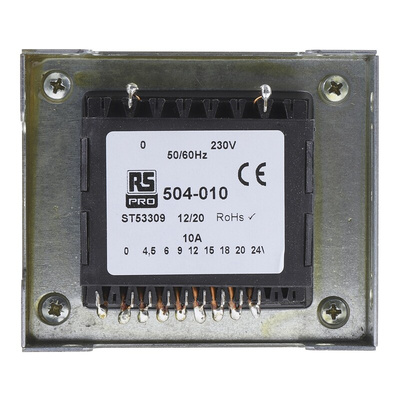

RS PRO 240VA 1 Output Chassis Mounting Transformer, 4.5V ac, 6V ac, 9V ac, 12V ac, 18V ac, 20V ac, 24V ac, Трансформатор

0504010
Производитель: RS PRO
Цена за шт.
41550.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 33369.00 руб. 33237.00 руб. 32043.00 руб. 28134.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Multi-Tapped Output Chassis Frame Mount Transformer

It has been over 100 years since the introduction of the first commercial Transformer when the mass production began. Since then, many additional modifications were developed to support various applications, such as electromagnetic, relays , pumps or heating elements.

.

The general concept of Chassis Mounting Transformers is around the usage of magnetic induction between coils to convert current and or voltage levels without changing the frequency.

Today, we are proudly introducing our own branded RS PRO Mains Transformer, packed in a chassis mount configuration. Our chassis type Mount Transformer provides a primary voltage rating of 230 V ac and power rating of 240 VA for exceptional isolating qualities. The two separate secondary windings can be connected either in series or parallel to give a wide range of output voltage and current options.

Features and Benefits

  • Chassis mounting frame construction low voltage Mains Transformer with a single 230 Vac, 50/60 Hz primary winding

  • The construction of our primary Mains provides double section bobbin fully shrouded

  • Our Chassis has a full varnish impregnation

  • Multi-hole frame fixing

  • The Transformer has a solder tag termination

  • 100% electrical and flash tested following BS3535 and EN 60742 regulations

  • The magnetic field that links both primary and secondary windings

Applications

Chassis type has a variety of applications where the Mains Transformer is used, particularly in:

  • Electromagnetic applications

  • Electronic and electrical control systems

  • relays

  • Pumps

  • Speed changers

  • heating elements.

Why RS PRO?

RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

Standards

BS3535; EN 60 742

Laminated Frame 230Vac Primary 75VA to 200VA (Multi Tapped)

Chassis mounting frame construction low voltage mains transformers with a single 230Vac 50/60Hz primary winding.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Multi-hole frame fixing
Solder tag terminations
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Техническая спецификация
pdfRS Pro Datasheet
Вес:
2.8кг
Вторичное номинальное напряжение:
4.5В перем. тока, 6В перем. тока, 9В перем. тока, 12В перем. тока, 18В перем. тока, 20В перем. тока, 24В перем. тока
Глубина:
82мм
Диаметр крепежного отверстия:
M5
Длина:
100мм
Количество выходов:
1
Максимальная рабочая частота:
60Гц
Минимальная рабочая частота:
50Гц
Мощность номинальная:
240ВA
Первичное номинальное напряжение:
230В перем. тока
Размеры:
100 x 92 x 82мм
Тип монтажа:
Chassis
Ширина:
92мм
