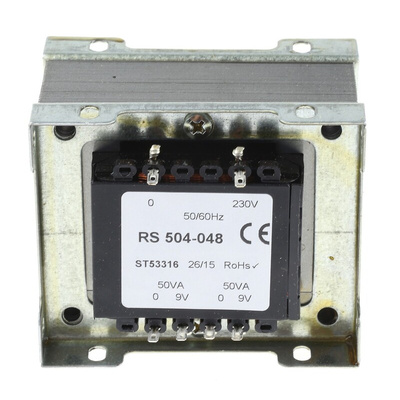

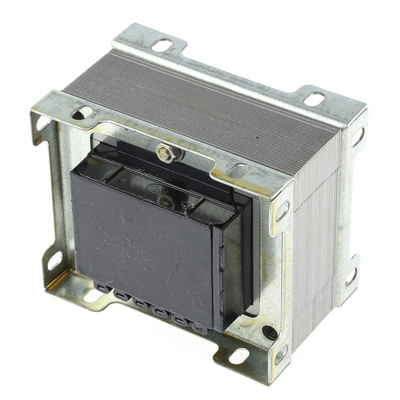

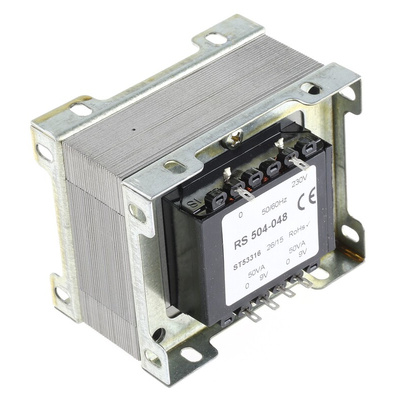

RS PRO 100 VA 2 Output Chassis Mounting Transformer, 9 V AC

This 100 VA two-output chassis mounting transformer from RS PRO is a versatile tool for converting voltage levels. You can connect its two independent secondary windings either in parallel or in series, offering you a wide range of current and output voltage options.
The transformer's tag terminations are ready for soldering and the item features several frame-fixing holes to make chassis mounting simple. It features full varnish impregnation and fully shrouded bobbins to ensure stability and durability. The product has also been quality-tested by leading engineers and meets the EN 60 742 and BS3535 standards for electrical safety. A chassis mounting transformer is often used in electronic, electromagnetic and electrical control applications. You can find it in pumps, relays and heating elements.

Features and Benefits

• Two outputs


• Primary voltage rating of 230 V AC


• Secondary voltage rating of 9 V AC


• Power rating of 100 VA


• Dimensions of 89 (length) x 68 (width) x 75 mm (depth)


• Fixing hole diameter of 4.7 x 7.9 mm


• Weight of 1.6 kg


• Operating frequency of 50 to 60 Hz


• Complies with RoHS (Restriction of Hazardous Substances) standards
