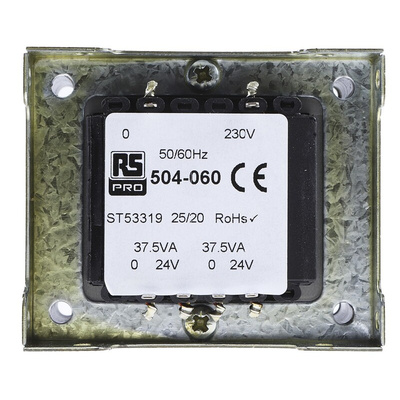

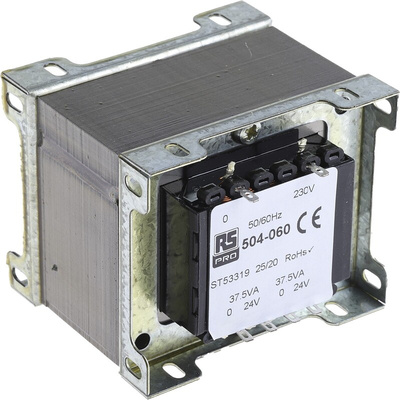

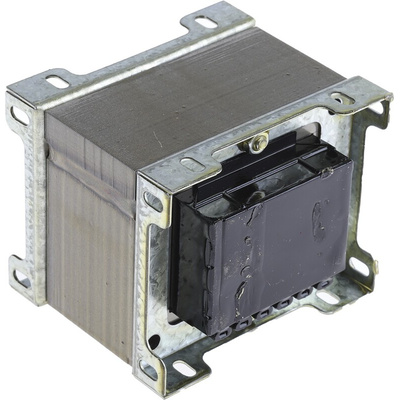

RS PRO 75VA 2 Output Chassis Mounting Transformer, 24V ac, IEC 61558-2-6, Трансформатор

RS PRO Chassis Frame Mount Panel Transformer

It has been over 100 years since the introduction of the first commercial Transformer when the mass production began. Since then, many additional modifications we developed to support various applications, such as electromagnetic, relays , pumps or heating elements.

.

The general concept of Chassis Mounting Transformers is around the usage of magnetic induction between coils to convert current and or voltage levels without changing the frequency.

Today, we are proudly introducing our own branded RS PRO Mains Transformer, packed in a chassis mount configuration. Our chassis type Mount Transformer provides a primary voltage rating of 230 V ac and power rating of 24 VA for exceptional isolating qualities. The two separate secondary windings can be connected either in series or parallel to give a wide range of output voltage and current options.

Features and Benefits

• Chassis mounting frame construction low voltage Mains Transformer with a single 230 Vac, 50/60 Hz primary winding


• The construction of our primary Mains provides double section bobbin fully shrouded


• Our Chassis has a full varnish impregnation


• Multi-hole frame fixing


• The Transformer has a solder tag termination


• 100% electrical and flash tested following BS3535 and EN 60742 regulations


• The magnetic field that links both primary and secondary windings

Applications

Chassis type has a variety of applications where the Mains Transformer is used, particularly in:

• Electromagnetic applications


• Electronic and electrical control systems


• relays


• Pumps


• Speed changers


• heating elements.

Why RS PRO?

RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

Note

Optional terminal shrouds for 75 VA and 100 VA (503-928)

Standards

BS3535; EN 60 742

Laminated Frame 230Vac Primary 75VA to 200VA (Multi Tapped)

Chassis mounting frame construction low voltage mains transformers with a single 230Vac 50/60Hz primary winding.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Multi-hole frame fixing
Solder tag terminations
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
