RS PRO 100VA 2 Output Chassis Mounting Transformer, 24V ac, IEC 61558-2-6, Трансформатор

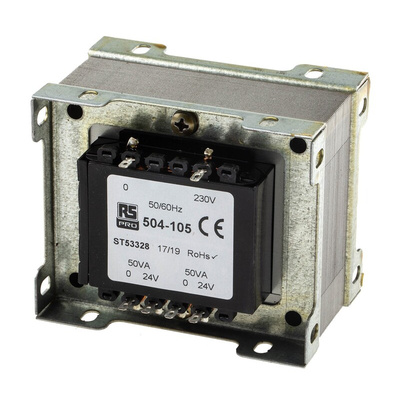

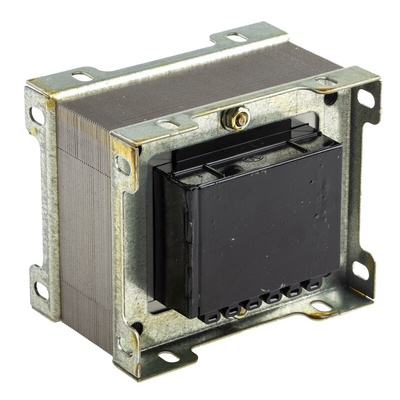

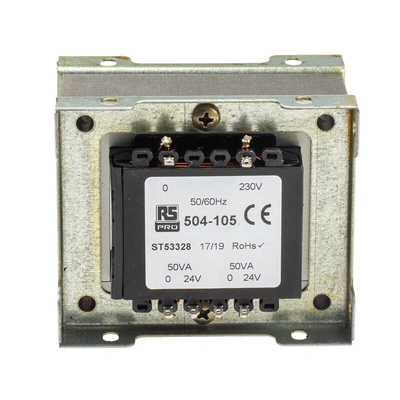

RS PRO 100 VA 2 Output Chassis Mounting Transformer, 24 V AC

The RS PRO 100 VA two-output chassis mounting transformer is a versatile tool that's used to convert voltage levels. The item includes two independent secondary windings that can be connected either in parallel or in series to provide a wide range of current and output voltage options. The transformer has solder tag terminations for fast and reliable connections and comes with several frame-fixing holes for simple chassis mounting. Its fully shrouded bobbins and full varnish impregnation add extra stability and durability.
This unit has been quality-tested and meets the BS3535 and EN 60 742 standards for electrical safety. It can be used in electromagnetic, electronic and electrical control applications. You'll commonly find this transformer in pumps, relays and heating elements.

Features and Benefits

• Two outputs


• Primary voltage rating of 230 V AC


• Secondary voltage rating of 24 V AC


• Power rating of 100 VA


• Dimensions of 89 (length) x 68 (width) x 75 mm (depth)


• Fixing hole diameter of 4.7 x 7.9 mm


• Weight of 1.6 kg


• Operating frequency of 50 to 60 Hz


• Complies with RoHS (Restriction of Hazardous Substances) standards
