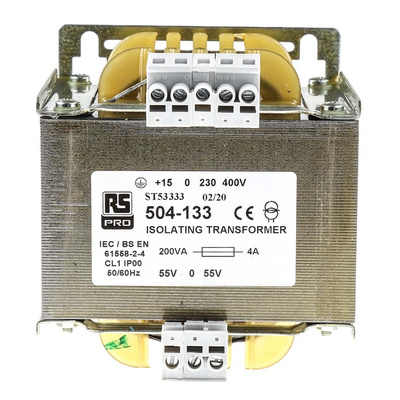

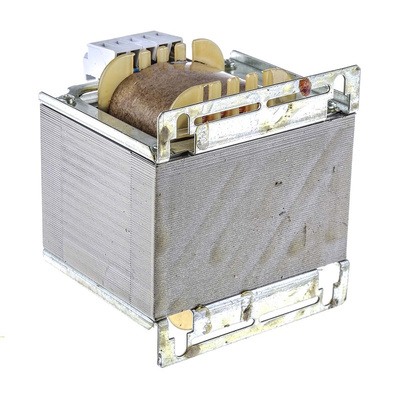

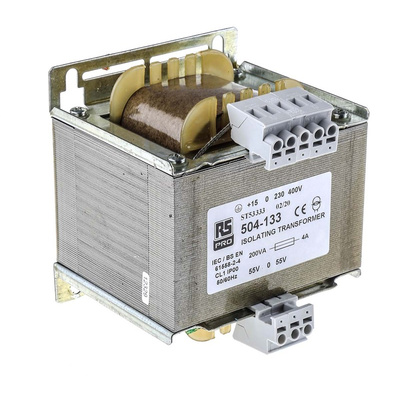

RS PRO 200VA 1 Output Chassis Mounting Transformer, 55V ac

RS PRO 200 VA Isolating Transformer, 230 V AC, 245 V AC, 400 V AC, 415 V AC Primary 1 x, ±55 V AC Secondary

This isolating transformer from RS PRO provides a safe way to transfer power from an AC source to your equipment. It has a primary voltage rating of 230, 245, 400 and 415 V AC and a secondary voltage rating of ±55 V AC, so you can use it with a wide range of electrical devices.
The transformer's dual standard primary winding has a +15 V tap to give you flexibility when it comes to input and its dual secondary windings are centre-tapped to provide two voltages that can drive independent circuits. The unit's varnish impregnation boosts dielectric strength and protects the coils from humidity and rusting. Its fully shrouded cage clamp terminals protect against electrical interference and make it easy to install.
Transformers of this kind are commonly used in control circuits. This device meets BS EN 615 as a safe and effective transformer and BS EN 61340-5-1:2007 Electrostatic Control Standards.

Features and Benefits

• DIN rail mounting
• Single output
• Power rating of 200 VA
• Operating frequency range of 50 to 60 Hz
• Length of 108 mm
• Width of 114 mm
• Depth of 110 mm
• Weight of 5 kg
• Maximum operating temperature of +35˚C
