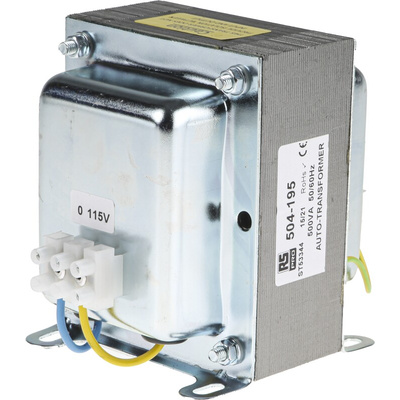

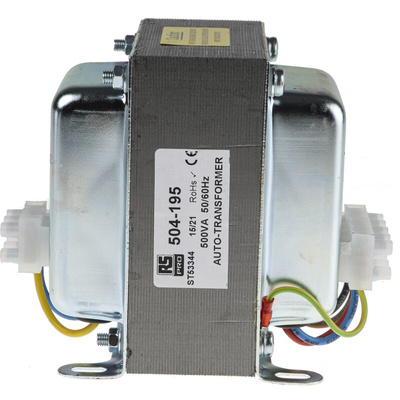

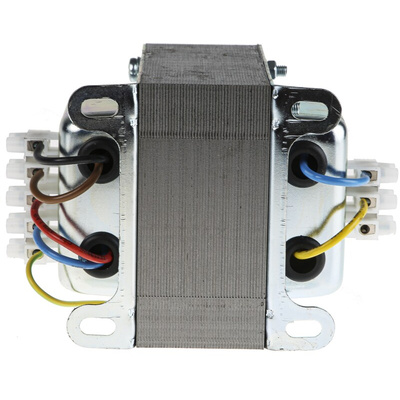

RS PRO 500VA Enclosed Autotransformer, 220 V ac, 230 V ac, 240 V ac Primary, 115V ac Secondary

RS PRO 500 VA Enclosed Autotransformer, 220 V AC, 230 V AC, 240 V AC Primary, 115 V AC Secondary

This RS PRO enclosed autotransformer is a useful tool when you need to lower supply voltages. It can run US equipment on higher European voltages, with a primary voltage rating of 220 V AC, 230 V AC or 240 V AC and a secondary voltage rating of 115 V AC.


The autotransformer is simple to install in a variety of places thanks to its compact design and four mounting holes. It contains a varnish-impregnated coil for improved dielectric strength and is fully shrouded to reduce electrical interference. The unit's terminal blocks feature protective covers, and it has been electrical and flash tested to guarantee safe use at high voltages.


You can use this autotransformer for a variety of tasks, such as regulating transmission line voltage and starting induction motors. It doesn't offer isolation from the mains.

Features and Benefits

• Chassis mounting, floor standing or wall mounting


• Single phase


• Power rating of 500 VA


• Operating frequency range of 50 to 60 Hz


• Length of 98 mm


• Width of 145 mm


• Depth of 118 mm


• Efficiency of 95.8%


• Weight of 4.2 kg


• Meets standard EN 61558 for transformer safety

RS PRO Datasheet
