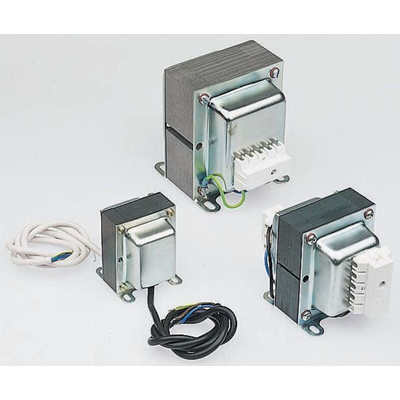

RS PRO 1kVA Enclosed Autotransformer, 220 V ac, 230 V ac, 240 V ac Primary, 115V ac Secondary

RS PRO 1 kVA Enclosed Autotransformer, 220 V AC, 230 V AC, 240 V AC Primary, 115 V AC Secondary

When you need to step down supply voltages, turn to this RS PRO enclosed autotransformer. Thanks to its primary voltage rating of 220 V AC, 230 V AC or 240 V AC and its secondary voltage rating of 115 V AC, it can power US equipment on higher European voltages.


The autotransformer has four mounting holes and a compact design, so you can easily install it in a variety of locations. It has a varnish-impregnated coil for better dielectric strength and is fully shrouded to minimise electrical interference. Its terminal blocks have protective coverings, and the unit has been electrical and flash tested to ensure safe operation at high voltages.


This autotransformer can be used to start induction motors and regulate transmission line voltage. It does not provide isolation from the mains.

Features and Benefits

• Chassis mounting, floor standing or wall mounting


• Single phase


• Power rating of 1 kVA


• Operating frequency range of 50 to 60 Hz


• Length of 115 mm


• Width of 192 mm


• Depth of 137 mm


• Efficiency of 96%


• Weight of 8.8 kg


• Meets standard EN 61558 for transformer safety
