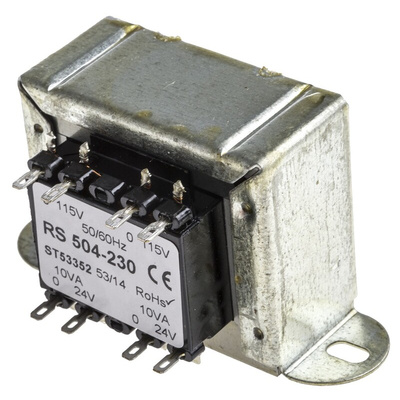

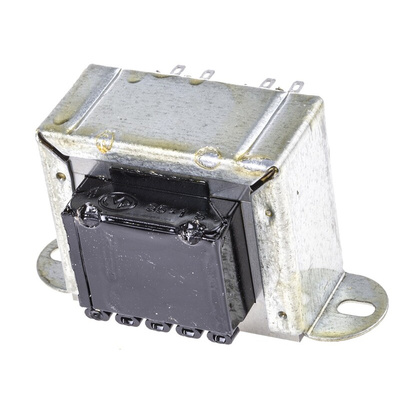

RS PRO 20 VA 2 Output Chassis Mounting Transformer, 24 V AC

Need to step voltages down or up without altering their frequency? This 20 VA two-output chassis-mounting transformer has two independent secondary windings that you can connect in series or in parallel for a broad range of output current and voltage choices.


The transformer's coils are completely varnish-impregnated for improved dielectric strength. It also features double-section bobbins that are fully shrouded to protect against electrical interference.


The two-hole fixing lets you install the transformer with wrap-over clamps, and the solder tag terminations provide secure connections. This product is useful for electrical control and electromagnetic applications involving speed changers, heating elements and pumps.

Features and Benefits

• Dimensions of 59 (length) x 57 (width) x 50 mm (depth)


• Fixing hole diameter of 4.7 x 8.7 mm


• Operating frequency range of 50 to 60 Hz


• Primary voltage rating of 115 V AC, 230 V AC


• Secondary voltage rating of 24 V AC


• Clamp mounting type


• Double output


• Power rating of 20 VA


• Weight of 550 g


• 100% electrical and flash tested


• Tested in accordance with BS 3535 and EN 60742 for isolating transformers safety
