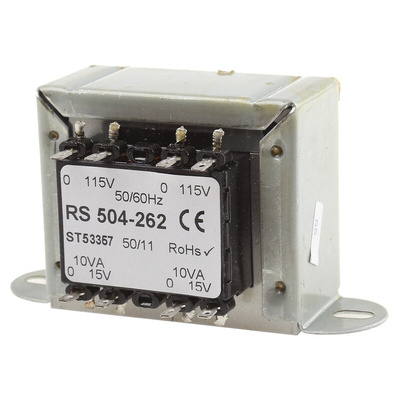

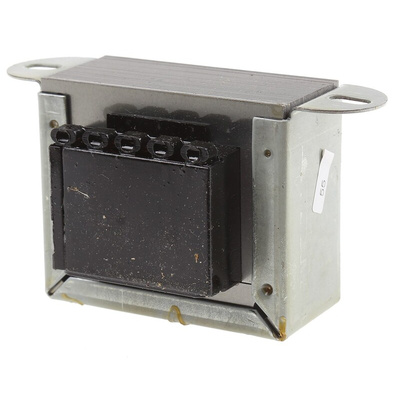

RS PRO 20VA 2 Output Chassis Mounting Transformer, 15V ac, Трансформатор

Chassis Mount Clamp & Frame Construction 115/230Vac Primary Transformer

Features and Benefits


"Double section bobbin construction\t\t
Fully shrouded bobbins\t\t
Full varnish impregnation\t\t
Two hole fixing wrap-over clamps 6VA to 50VA\t\t
Multi-hole frame fixing 100VA
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"

Note

Suitable transformer shrouds: 6VA = 503-912 ; 12 & 20VA = 504-004 ; 50, 75 & 100VA = 503-928

Standards

BS3535; EN 60 742

Open Laminated Clamp & Frame 115-230Vac Primary 6VA to 100VA

Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

RS PRO Datasheet
