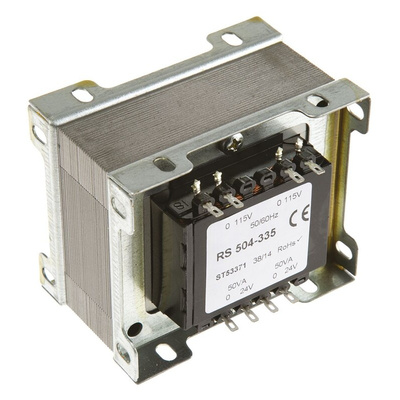

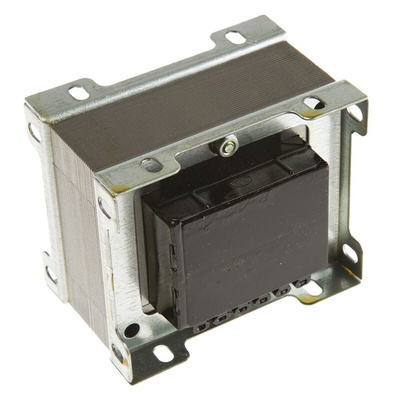

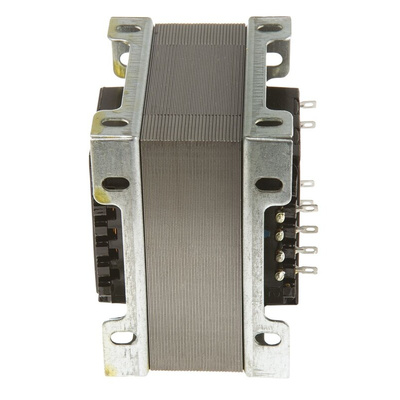

RS PRO 100 VA 2 Output Chassis Mounting Transformer, 24 V AC

When you need to step voltages down or up without altering their frequency, choose this two-output chassis-mounting transformer from RS PRO. It has two independent secondary windings that you can connect in series or in parallel for a broad range of output current and voltage choices.


The transformer's coils are varnish-impregnated for improved dielectric strength. The unit also features double-section bobbins that are fully shrouded to protect against electrical interference.


The two-hole fixing lets you install the transformer with wrap-over clamps, and the solder tag terminations provide secure connections. This product is useful for electrical control and electromagnetic applications involving speed changers, heating elements and pumps.

Features and Benefits

• Dimensions of 89 (length) x 68 (width) x 75 mm (depth)


• Fixing hole diameter of 7.9 x 4.8 mm


• Operating frequency range of 50 to 60 Hz


• Primary voltage rating of 115 V AC, 230 V AC


• Secondary voltage rating of 24 V AC


• Chassis mounting


• Power rating of 100 VA


• Weight of 1.6 kg


• 100% electrical and flash tested


• Tested in accordance with BS 3535 and EN 60742 for isolating transformers safety
